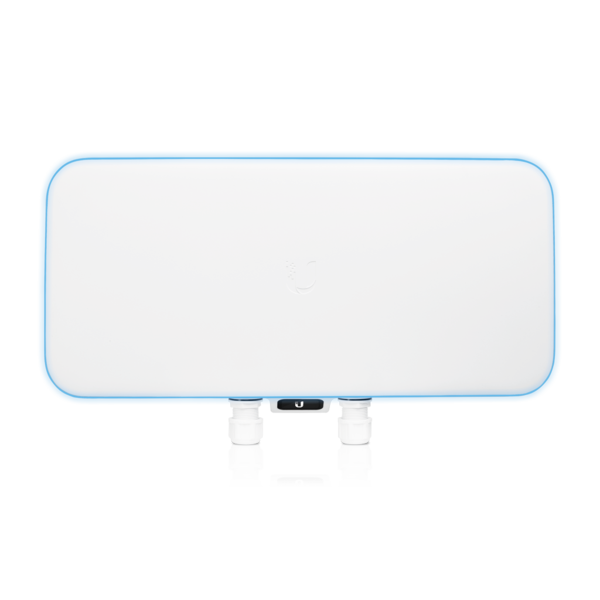

Ubiquiti UBB-XG Unifi Building to Building Bridge

https://arcip.com.au/web/image/product.template/3944/image_1920?unique=256363b
The Ubiquiti UWB-XG is a WiFi 5 single-band access point with 12 spatial streams, covering 465 m². Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.

1,970.47 1970.47 AUD 2,066.35 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Max Clients
  • Coverage Area
  • AP Features

This combination does not exist.

PoE++ 10GbE Indoor UniFi Access Point Ubiquiti Ceiling Mount MU-MIMO WiFi 5
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UBB-XG
Barcode
810010076045
Tags
UWB-XG
Ubiquiti UniFi WiFi BaseStation XG — WiFi 5 Access Point and 10 GbE Uplink
UWB-XG
UWB-XG

Features

  • WiFi 5 (5 GHz only)
  • 12 spatial streams
  • 465+ m² open space coverage
  • 1,500+ connected devices
  • Powered using PoE++
  • (1) GbE and (1) 10 GbE uplink
  • Versatile wall and pole mounting
  • Phased array antenna system with software-adjustable coverage (50° or 90°)
  • Weatherproof (outdoor exposed)

Specifications

Overview
Dimensions471.1 x 257.5 x 94.3 mm
WiFi StandardWiFi 5
Spatial Streams12
Coverage Area465 m²
Max. Client Count1500+
Uplink10 GbE
MountingWall, Pole (Mounts Included), VESA (Optional)
WeatherproofingIP67
Power MethodPoE++
Performance
5 GHzLow Band: 4 x 4 (DL MU-MIMO) / Vertical Band: 4 x 4 (DL MU-MIMO) / High Band: 4 x 4 (DL MU-MIMO)
5 GHzLow Band: 1.7 Gbps (BW80) / Vertical Band: 1.7 Gbps (BW80) / High Band: 1.7 Gbps (BW80)
5 GHzDirectional internal: 15 dBi, 50° x 50° / Directional internal: 10 dBi, 90° x 90°
5 GHz25 dBm
Max. BSSIDs8 per Radio
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40)
Hardware
Max. Power Consumption31W
Supported Voltage Range44–57V DC
Networking Interface(1) GbE RJ45 port / (1) 1/10 GbE ICM Ethernet port
Weight3.2 kg
Pole Mount Diameter1~3" (25~76 mm)
Antennas(1) Integrated dual-mode antenna array
ManagementEthernet / Bluetooth
Enclosure MaterialPolycarbonate, aluminum alloy
SystemR/G/B
Channel BandwidthHT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
CertificationsCE, FCC, IC, Anatel: 08960-24-08356
Operating FrequencyUS/CA: / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5670 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 5150 - 5250 MHz / 5250 - 5350 MHz / 5470 - 5670 MHz
Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 6.0.45 and later

Professional Overview

The Ubiquiti UWB-XG is a WiFi 5 access point with 12 spatial streams, designed for 465 m² coverage. Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.

On 5 GHz, the UWB-XG delivers Low Band: 1.7 Gbps (BW80) / Vertical Band: 1.7 Gbps (BW80) / High Band: 1.7 Gbps (BW80). It supports up to 1,500 concurrent clients.

The UWB-XG features a 10 GbE uplink and is powered via PoE++. Mounting options include Wall, Pole (Mounts Included), VESA (Optional). It integrates seamlessly with the UniFi Network ecosystem for centralised management, zero-touch provisioning, and seamless roaming.

Weighing 3.2 kg with dimensions of 471.1 x 257.5 x 94.3 mm, the UWB-XG is built for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Form Factor Wall, Pole (Mounts Included), VESA (Optional)
WiFi Standard WiFi 5 (802.11ac)
Frequency Band Single-Band (5 GHz)
Max Throughput Low Band: 1.7 Gbps (BW80) / Vertical Band: 1.7 Gbps (BW80) / High Band: 1.7 Gbps (BW80)
PoE Requirement PoE++
Max Clients 1,500
Coverage Area 465 m²
AP Features Mesh, Band Steering, MU-MIMO, 10 GbE Uplink
