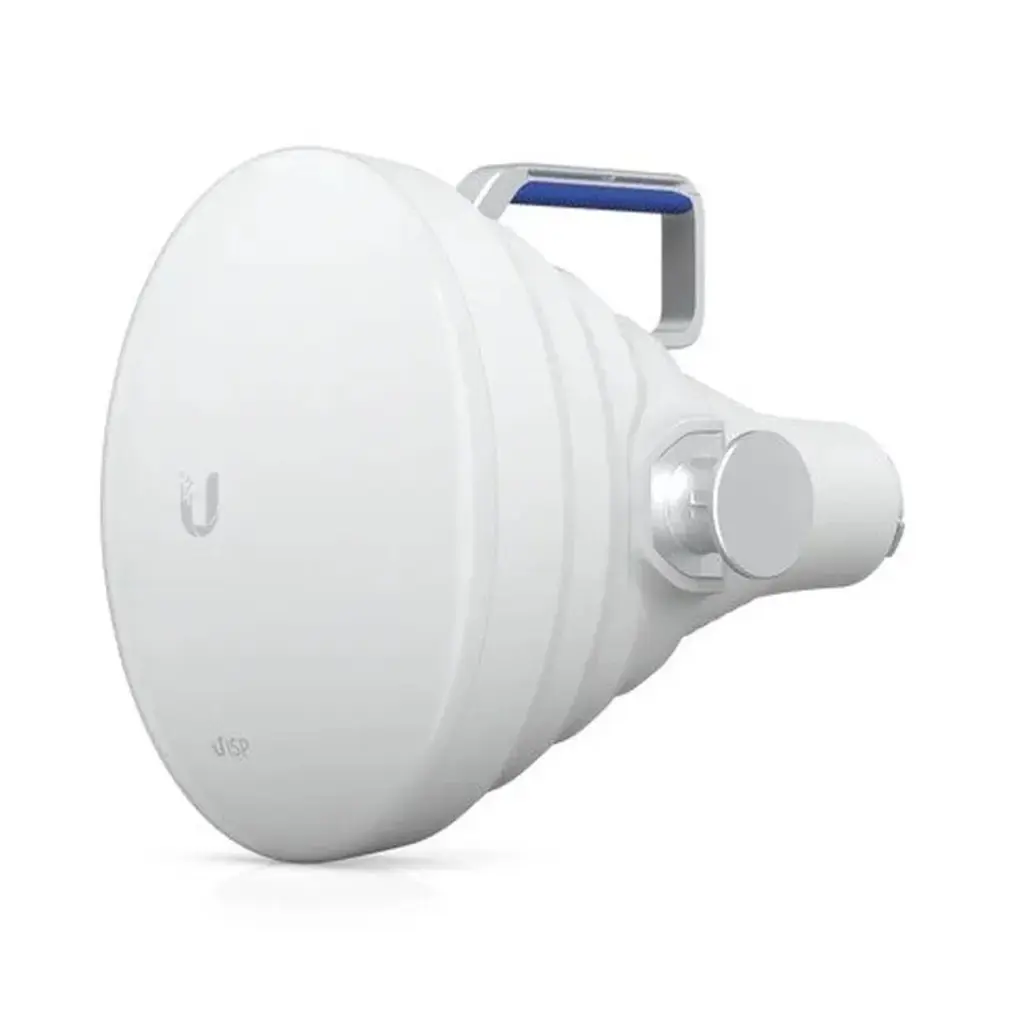

Ubiquiti UISP-Horn UISP Horn 5.15-6.875GHz Antenna

https://arcip.com.au/web/image/product.template/3984/image_1920?unique=8867584
The Ubiquiti UISP Horn is a high-performance 5 GHz antenna delivering superior beam efficiency and noise isolation. It's purpose-built for creating clean, scalable PtMP links in crowded RF environments.

378.40 378.4 AUD 378.40 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UISP Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UISP-Horn
Barcode
810010076694
Tags
UISP-Horn
Ubiquiti UISP-Horn UISP Horn 5.15-6.875GHz Antenna

Features

  • Superior beam performance with minimal side lobes
  • High noise immunity for co-location deployments
  • Wide operating frequency range (5.15 - 6.875 GHz)
  • Weatherproof IP65-rated design for outdoor durability
  • Plug-and-play integration with compatible UISP radios

Specifications

RF Characteristics
Frequency Range5.15 - 6.875 GHz
Gain14 dBi
HPOL Beamwidth45°
VPOL Beamwidth45°
Elevation Beamwidth45°
Mechanical
Dimensions187 x 167 x 150 mm
Weight800 g
WeatherproofingIP65
Wind Survivability200 km/h (125 mph)
MountingIntegrated mount for UISP radios

Professional Overview

The Ubiquiti UISP Horn is a specialized, high-performance antenna designed to revolutionize Point-to-MultiPoint (PtMP) network deployments. As a key component of the UISP ecosystem, it is meticulously engineered to provide highly defined, targeted RF coverage while aggressively mitigating the interference that plagues modern, high-density wireless networks.

The primary advantage of the UISP Horn lies in its superior beam performance. Unlike traditional sector antennas that produce wide side lobes which can cause and receive interference, this horn antenna has virtually no side lobes and an extremely clean radiation pattern. It focuses RF energy only where it's needed, within a precise beam. This characteristic is invaluable in co-located tower environments, as it allows network operators to deploy multiple radios close together without causing self-interference, enabling greater frequency reuse and dramatically increasing the overall capacity of the site.

The practical result of this clean beam is a significantly improved Signal-to-Noise Ratio (SNR) for all connected client devices. This leads directly to more stable, reliable links and allows for the use of higher-order modulation schemes, which translates to increased data throughput for every customer. The antenna's wide operating frequency range of 5.15 - 6.875 GHz also provides service providers with greater flexibility in channel planning to find the cleanest possible spectrum.

Engineered for seamless integration and durability, the UISP Horn features a robust, IP65-rated weatherproof design for long-term outdoor reliability. It offers a simple, plug-and-play connection to compatible UISP radios like the PrismStation and IsoStation, making it an effortless, modular upgrade for any basestation. For any WISP looking to build a robust, interference-resistant network, the UISP Horn provides an unmatched combination of precise beam control, noise immunity, and raw performance.
