Ubiquiti UDW UniFi Dream Wall Wall-mountable UniFi OS Console WiFi6

Price:

1,928.30


Ubiquiti UDM-Pro UniFi MultiApplication System with 3.5" HDD Expansion 8Port Switch Rackmount
Ubiquiti UDM-Pro UniFi MultiApplication System with 3.5" HDD Expansion 8Port Switch Rackmount
763.95
763.95
Ubiquiti UF-ADAPTER-APC-50 Connects two cables with SC/APC-type connectors
Ubiquiti UF-ADAPTER-APC-50 Connects two cables with SC/APC-type connectors
16.50
16.50

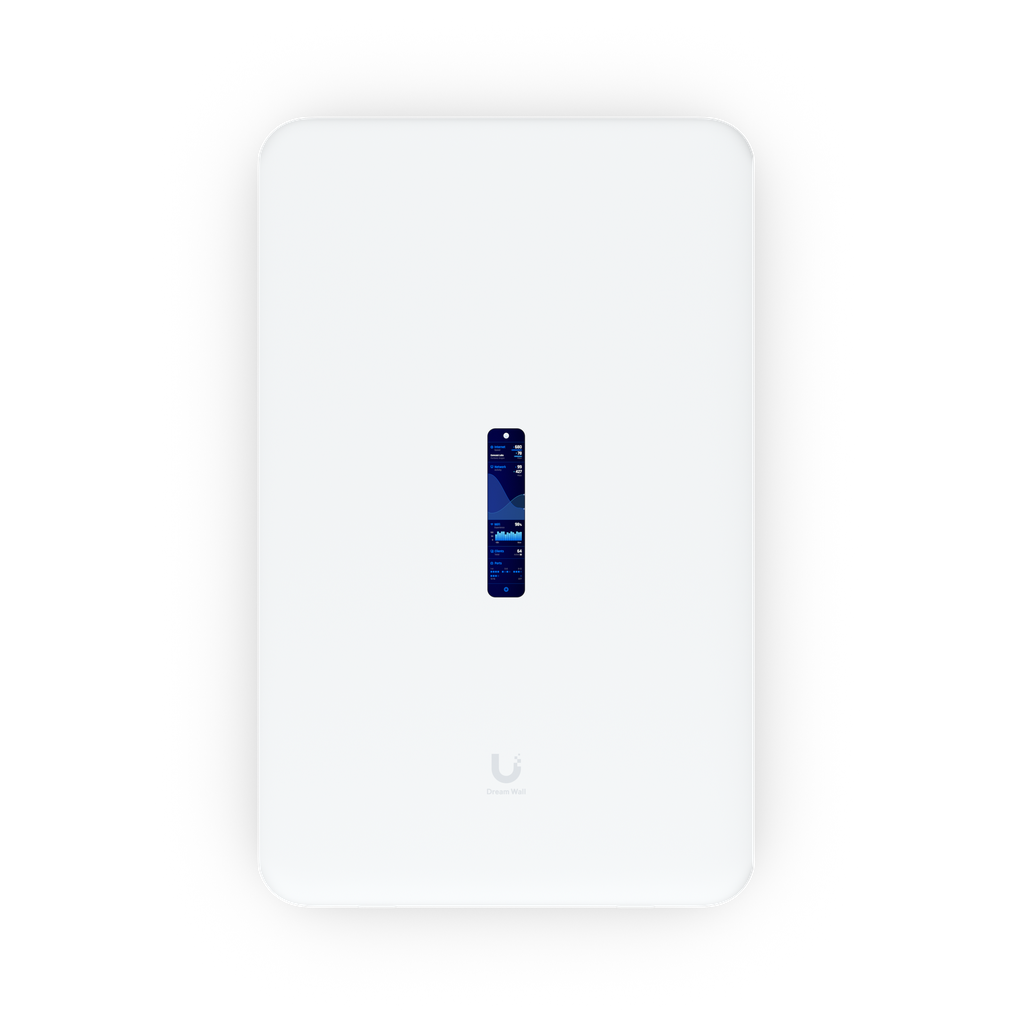

Ubiquiti UDW UniFi Dream Wall Wall-mountable UniFi OS Console WiFi6

https://arcip.com.au/web/image/product.template/3961/image_1920?unique=d79c493
The UDW. Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.

1,928.30 1928.3 AUD 1,928.30 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UniFi Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDW
Barcode
810010079558
Tags
UDW
Ubiquiti UniFi Dream Wall
UDW
UDW

Features

  • Built-in WiFi 6 AP
  • Includes full UniFi application suite for device management
  • 3.5+ Gbps routing with IDS/IPS
  • (1) 10G SFP+*, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
  • (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
  • 4.7" touchscreen for management
  • Integrated 128 GB SSD & pre-installed 512 GB microSD card
  • *Pair with an official
  • SFP+ Module
  • or
  • SFP+ to RJ45 Adapter
  • for the best experience.

Specifications

Overview
Dimensions549 x 342 x 62 mm /
Managed UniFi Devices100+
Managed Cameras(12) HD / (7) 2K / (4) 4K
Simultaneous Users Connected300+
Max. WAN Port Count8
Default WAN Ports(1) 2.5 GbE RJ45 / (1) 10G SFP+
1 GbE RJ4517 (4 PoE++; 4 PoE+; 4 PoE / (1G/100M/10M)
2.5 GbE RJ451 / (2.5G/1G/100M)
10G SFP+2 / (10G/1G)
IDS/IPS Throughput3.5 Gbps
Form FactorWall-mounted
Redundancy(2) Hot-Swappable PSUs
Coverage Area140 m²
Security
IDS/IPS Signatures55,000+ / with CyberSecure
Networking
MAC Address Table Size8,000
Integrated WiFi
WiFi Standard802.11a/b/g/n/ac/ax (WiFi 6)
5 GHz2.4 Gbps
2.4 GHz300 Mbps
5 GHz4 x 4 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz6 dBi
2.4 GHz5.9 dBi
5 GHz26 dBm
2.4 GHz23 dBm
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs8 per Radio
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Hardware
NVR StoragePre-installed 512 GB microSD for NVR / Built-in 128 GB SSD for detection recordings
Expansion SlotMicroSD Card
PoE Budget420W
PoE15.4W
PoE+30W
PoE++60W
Voltage Range PoE ModePoE: 44-57V / PoE+/PoE++: 50-57V
Max. Power Consumption532W (Including PoE Output)
Power MethodUniversal AC input 100–240V AC, 7A Max., 50/60Hz
Power Supply(2) Hot-Swappable AC/DC 550W PSU / (1) Pre-installed PSU
Supported Voltage Range100–240V AC
Heat Dissipation382 BTU/hr (Excluding PoE Output)
ProcessorQuad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory4 GB
On-board Storage16 GB eMMC / Integrated 128 GB SSD / Pre-installed 512 GB microSD card
Weight8.6 kg
Enclosure MaterialPolycarbonate, galvanized steel, aluminum alloy
Mount MaterialStainless steel
LCM Display4.7" touchscreen
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 18314-23-08356
Software
VLAN802.1Q

Professional Overview

The Ubiquiti UDW is a UniFi device. Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.

Weighing 8.6 kg, the UDW is built for reliable operation. Australian stock, fast shipping from ARC IP Networks.
