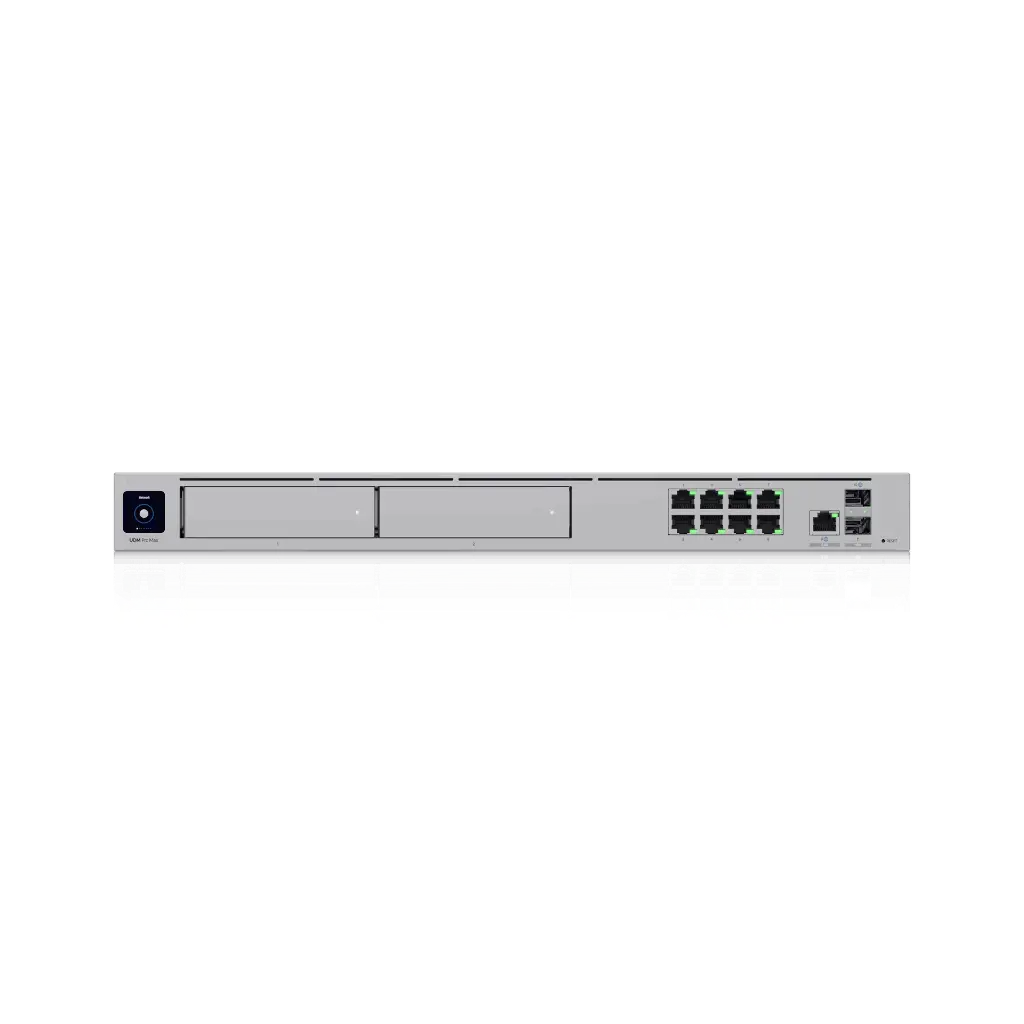

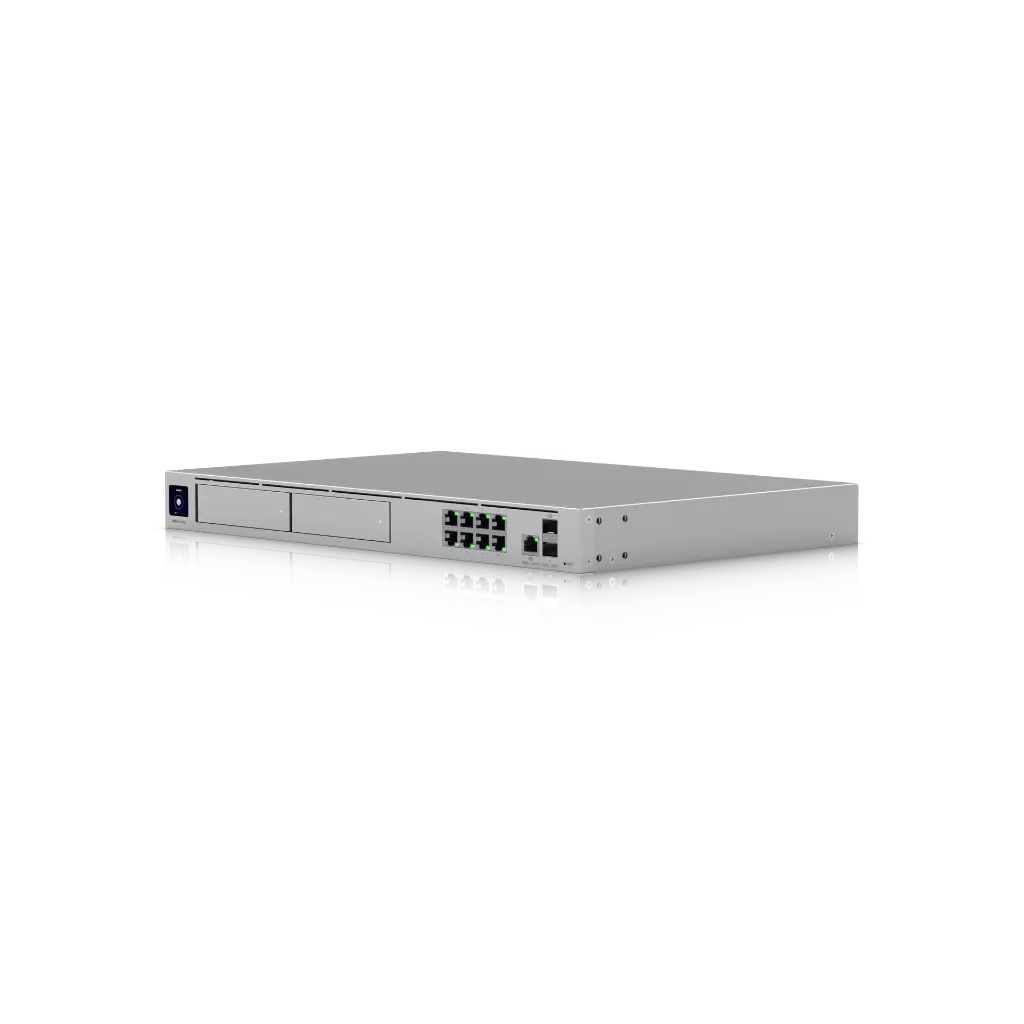

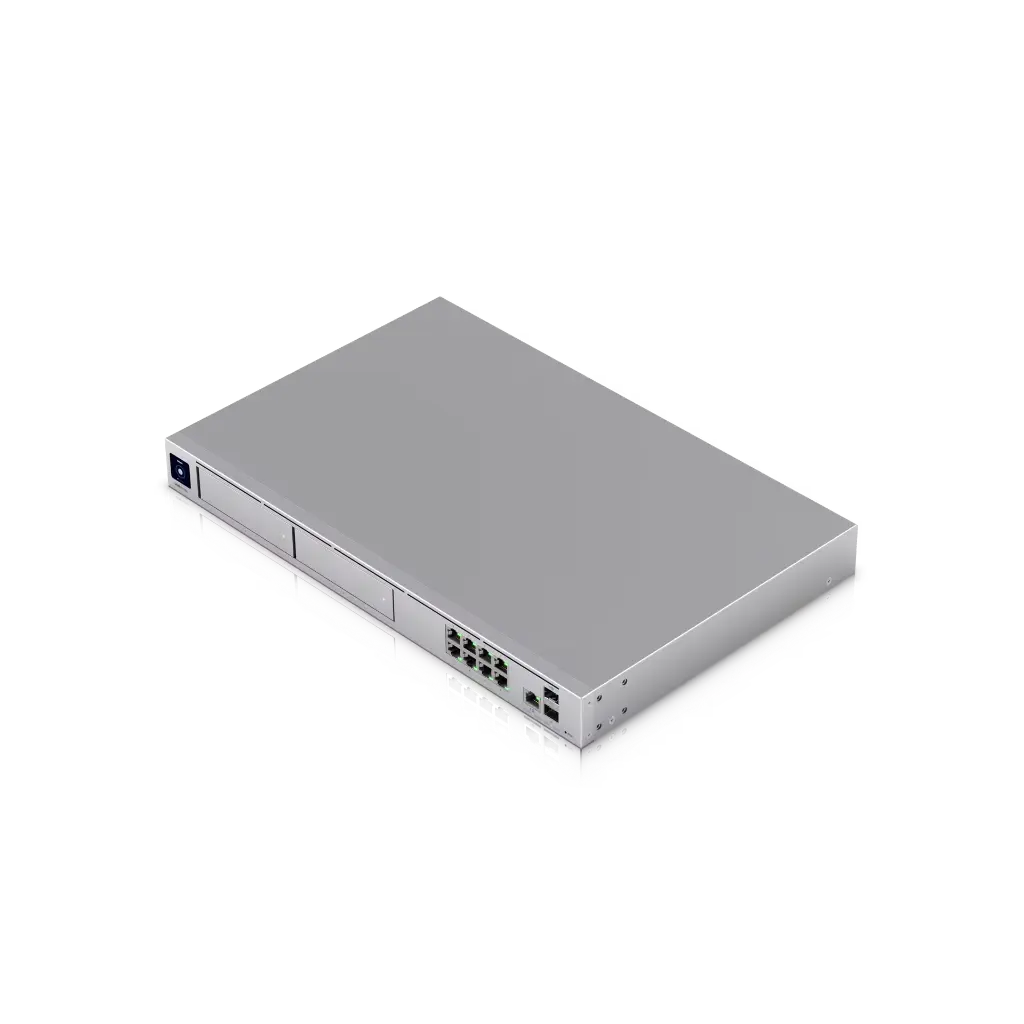

Ubiquiti UDM-Pro-Max-AU UniFi MultiApplication System with 2x HDD Bays 8 Port Switch Rackmount

https://arcip.com.au/web/image/product.template/3958/image_1920?unique=d72b87e
The Ubiquiti UniFi Dream Machine Pro Max is the ultimate all-in-one console, delivering 110G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

1,120.90 1120.9 AUD 1,120.90 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UniFi Ubiquiti Dream Machine
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDM-Pro-Max
Barcode
810084693285
Tags
UDM-Pro-Max
Ubiquiti UDM-Pro-Max-AU UniFi MultiApplication System with 2x HDD Bays 8 Port Switch Rackmount

Features

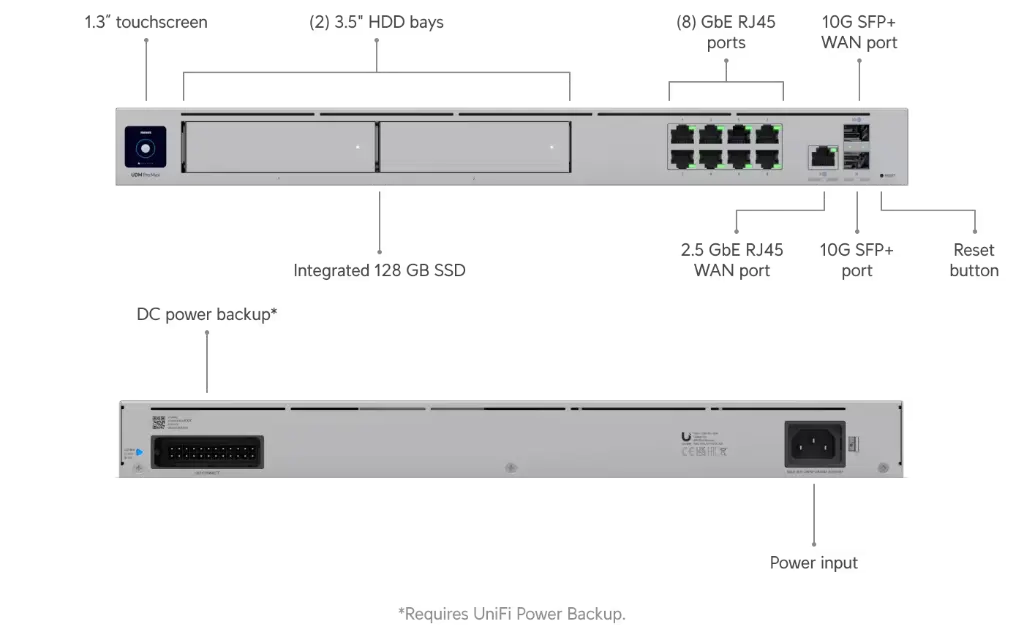

  • All-in-one 1U rack appliance with UniFi OS
  • (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN ports
  • (8) 2.5 GbE RJ45 LAN ports
  • (2) 10G SFP+ LAN ports for high-speed backbone
  • Dual 3.5" HDD bays for NVR storage redundancy (RAID 1)
  • Advanced security gateway with 5 Gbps IDS/IPS throughput
  • 1.3" LCM color touchscreen for at-a-glance network insights
  • 128 GB integrated SSD for fast application startup

Specifications

Interfaces
LAN(8) 2.5 GbE RJ45 Ports
(2) 10G SFP+ Ports
WAN(1) 2.5 GbE RJ45 Port
(1) 10G SFP+ Port
ManagementEthernet In-Band, Bluetooth
PoE
PoE Interfaces
Total PoE Budget
Performance & General
IDS/IPS Throughput5 Gbps
ProcessorQuad-Core ARM® Cortex®-A57 at 2.0 GHz
System Memory8 GB DDR4
On-Board Storage32 GB eMMC, 128 GB SSD
HDD Bays(2) 2.5"/3.5" SATA HDD (RAID 1 Support)
Power MethodUniversal AC Input, 100-240VAC
Max. Power Consumption50W (Excludes PoE Output)

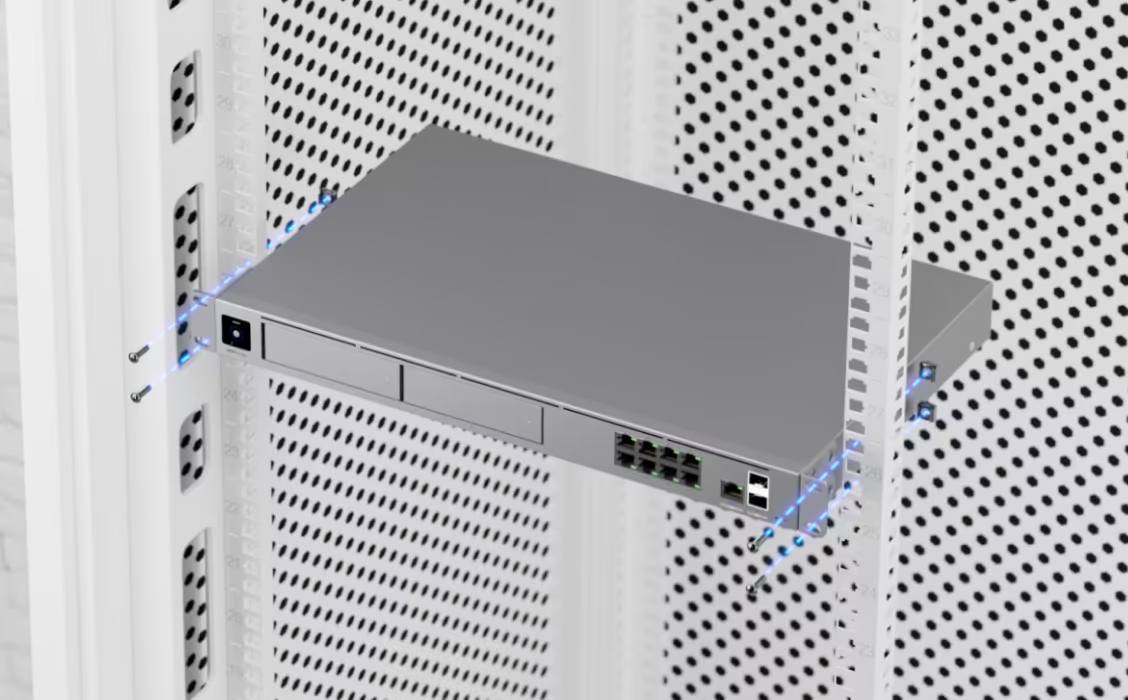

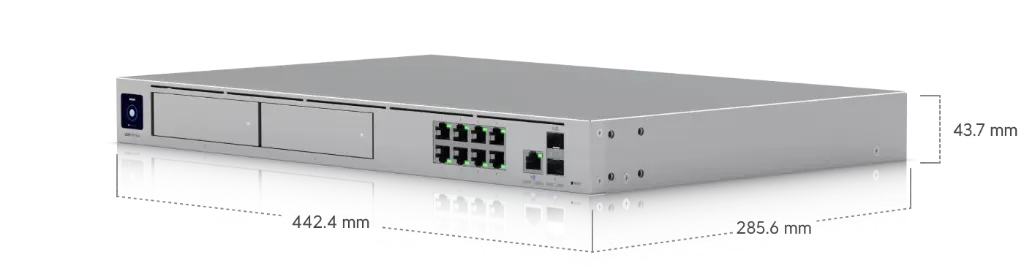

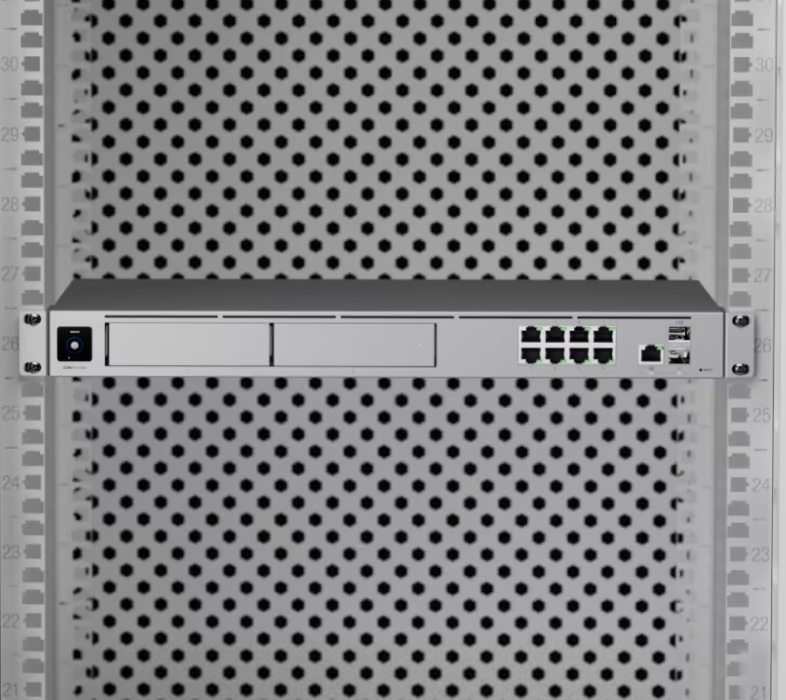

Form Factor1U Rack-Mountable

Professional Overview

The Ubiquiti UniFi Dream Machine Pro Max represents the pinnacle of the UniFi all-in-one console lineup, engineered for the most demanding enterprise networks that require maximum performance, redundancy, and future-proofing. It masterfully consolidates a high-performance security gateway, a multi-gigabit PoE switch, and a redundant Network Video Recorder (NVR) into a single, powerful 1U rack appliance. The UDM Pro Max is the definitive foundation for building a robust and scalable UniFi network.

Performance and connectivity are at the forefront of the UDM Pro Max's design. It features dual WAN ports—one 10G SFP+ and one 2.5 GbE RJ45—to support multi-gigabit internet connections with failover or load balancing. The LAN side is equally impressive, with eight 2.5 GbE RJ45 ports. Two 10G SFP+ LAN ports provide a high-capacity fiber backbone to your core network. A powerful quad-core processor drives it all, enabling an impressive 5 Gbps of threat management (IDS/IPS) throughput to keep your network secure without compromise.

The key differentiator of the UDM Pro Max is its enhanced storage and reliability for UniFi Protect. It is equipped with two 3.5" HDD bays that support RAID 1 mirroring. This provides critical redundancy for your surveillance footage; if one drive fails, your recordings are safely preserved on the other, ensuring no data loss for your mission-critical security system. This makes the UDM Pro Max the most resilient all-in-one NVR in the UniFi lineup.

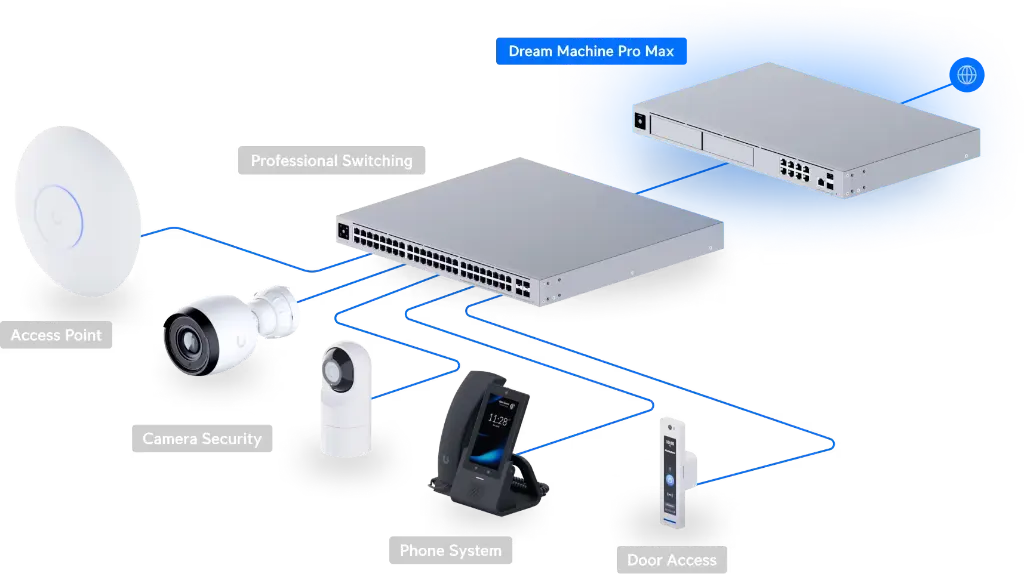

Running the comprehensive UniFi OS, the Dream Machine Pro Max manages your entire network of access points, switches, and cameras from a single intuitive interface. For businesses, educational institutions, and advanced users who require the absolute best in performance, security, and storage redundancy, the UDM Pro Max is the ultimate, no-compromise solution for a world-class UniFi deployment.
