Ubiquiti USW-Pro-Max-24 Unifi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE

https://arcip.com.au/web/image/product.template/4047/image_1920?unique=09d30d9
The Ubiquiti UniFi Switch Pro Max 24 is a next-generation Layer 3 switch featuring 24 high-power 2.5GbE PoE++/PoE+ ports, a massive 480W budget, and innovative Etherlighting™ for advanced network management.

0.00 0.0 AUD 0.00 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

2.5GbE 10GbE UniFi Switch Layer 3 Rack Mount SFP+ Managed Switch Ubiquiti Etherlighting 24-Port VLAN DC Power Backup 112 Gbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
USW-Pro-Max-24
Ubiquiti UniFi Switch Pro Max 24 — 24-Port Layer 3 Etherlighting Switch with 2.5 GbE

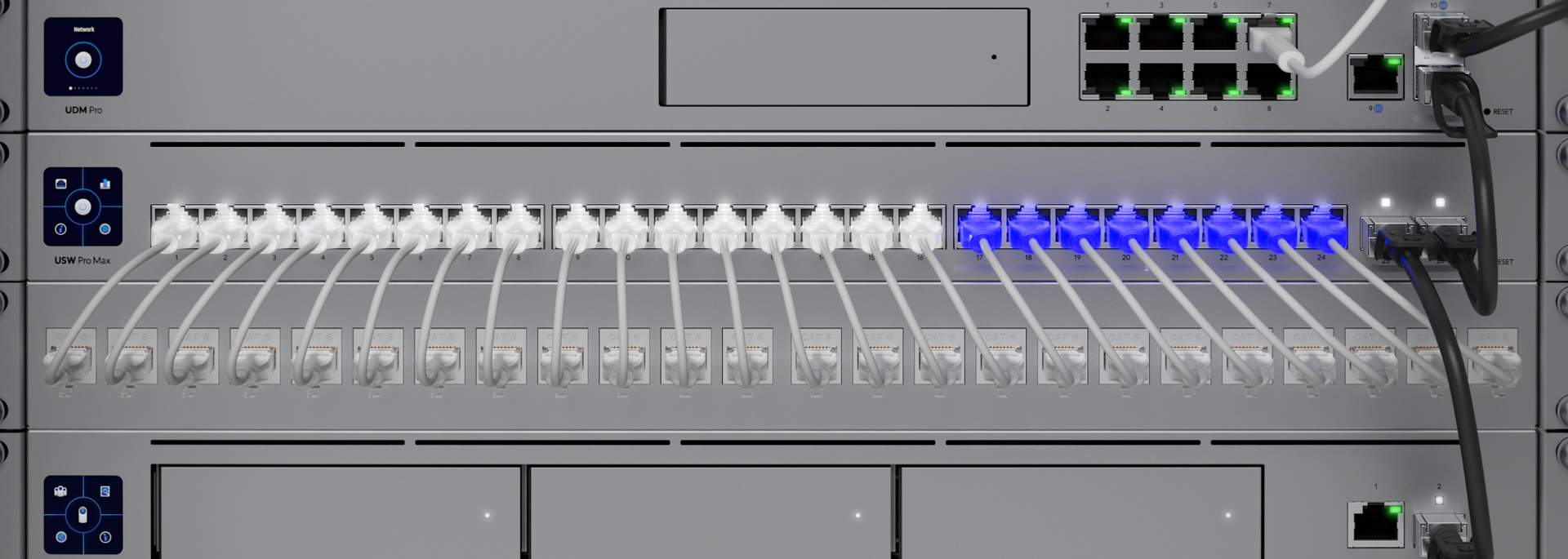

USW-Pro-Max-24 Etherlighting Detail

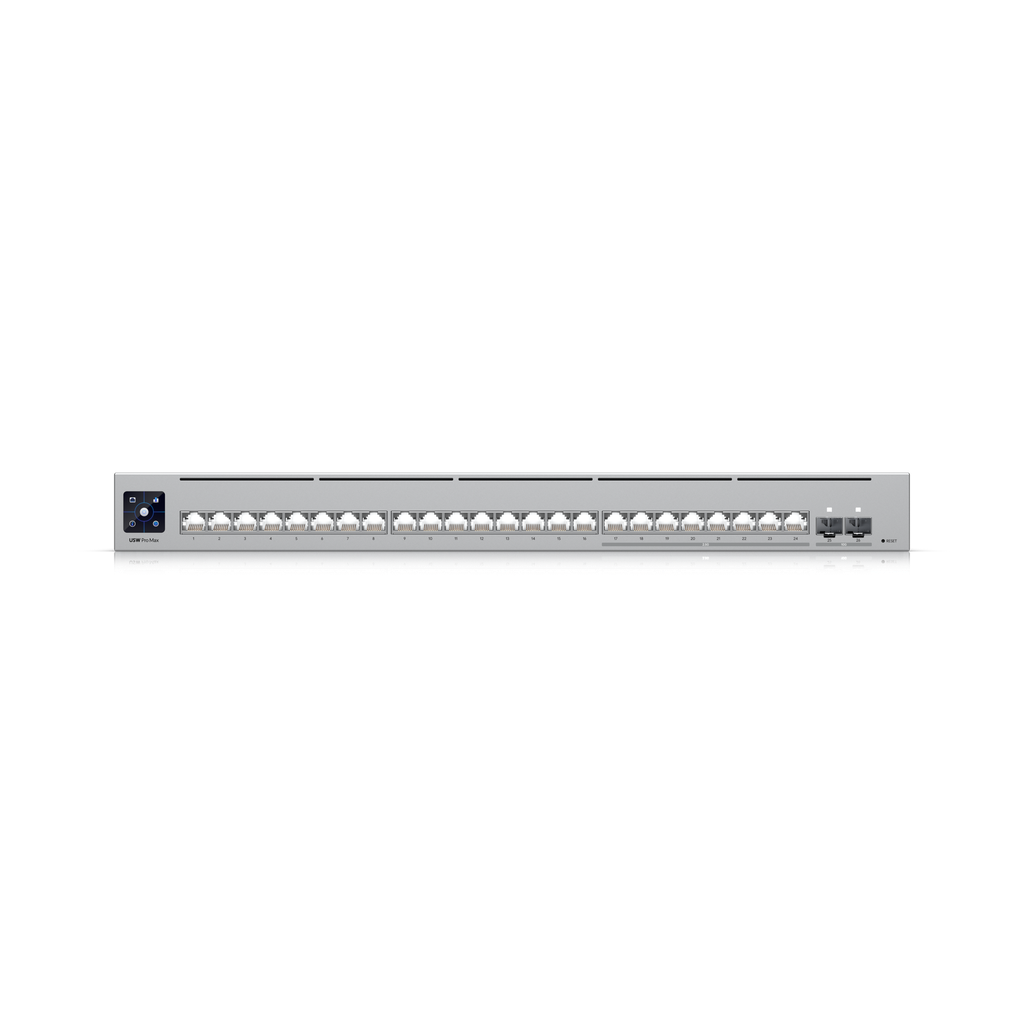

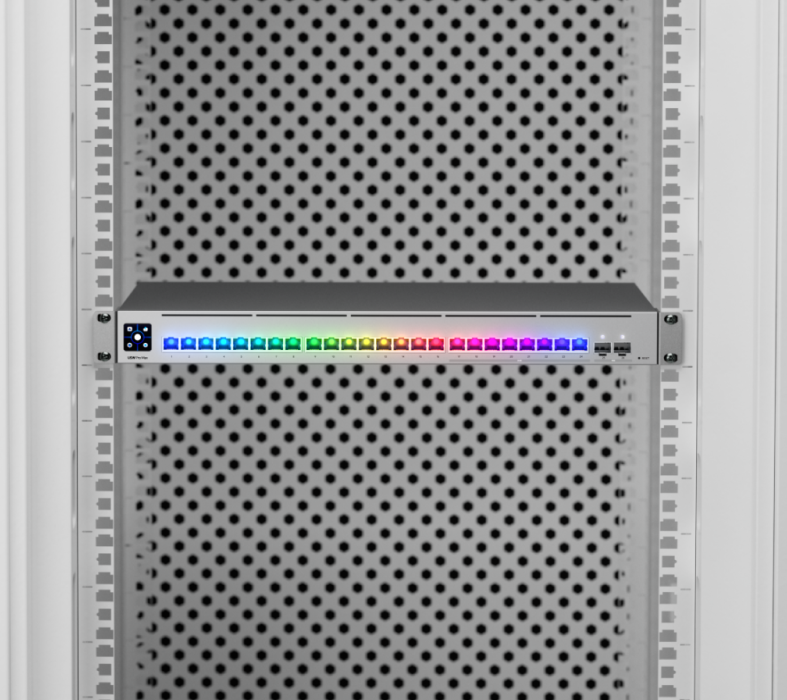

USW-Pro-Max-24 Front View

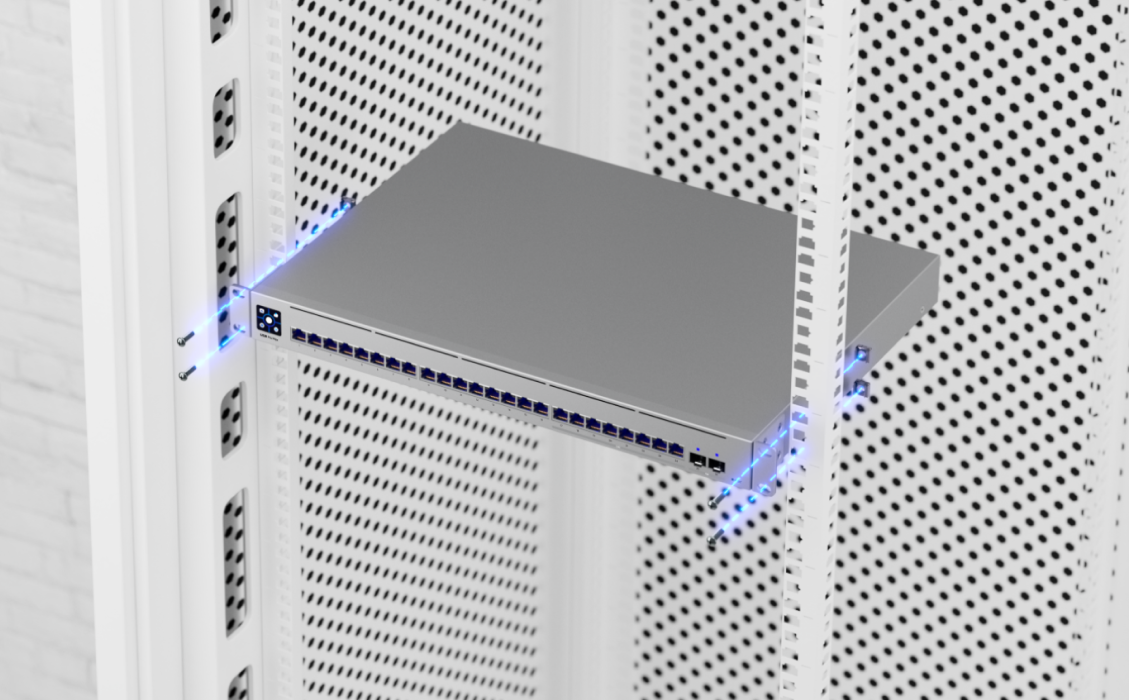

USW-Pro-Max-24 Rack Deployment

Features

  • Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (8) 2.5 GbE RJ45 ports (2.5G/1G/100M/10M)
  • (16) GbE RJ45 ports (1G/100M/10M)
  • (2) 10G SFP+ ports for high-speed uplinks (10G/1G)
  • Layer 3 routing with inter-VLAN support and 256 static routes
  • 112 Gbps switching capacity with 56 Gbps non-blocking throughput
  • 83 Mpps forwarding rate
  • DC Power Backup redundancy via USP RPS
  • Near-silent operation: 17.1 dBA at idle
  • Rack mountable 1U form factor

Specifications

Overview
Total Ports(8) 2.5 GbE + (16) GbE + (2) 10G SFP+
Dimensions442 x 325 x 44 mm
RedundancyDC Power Backup (USP RPS)
Form FactorRack Mount (1U)
Performance
Switching Capacity112 Gbps
Non-Blocking Throughput56 Gbps
Forwarding Rate83 Mpps
Supported VLANs1,000
MAC Address Table16,000
ARP Entries6,000
IPv4 Static Routes256
ACLs (IPv4 / MAC)128 / 128
Hardware
Max. Power Consumption50W
Power SupplyAC/DC, internal, 60W (100–240V AC, 50/60 Hz)
DC Power BackupUSP RPS DC input
Heat Dissipation170.6 BTU/hr
Weight4.2 kg / 4.3 kg with brackets
EnclosureSGCC Steel
Environment
Operating Temperature-5 to 40°C (23 to 104°F)
Operating Humidity5 to 95% Noncondensing
Noise Level17.1 dBA (idle) / 37.1 dBA (max)
Certifications
SafetyCB, UL/cUL, CE LVD, S-Mark, BSMI, LOA
EMCFCC, IC, CE, KC, BSMI, RCM, EAC, UKCA

Professional Overview

The Ubiquiti USW-Pro-Max-24 is a high-performance Layer 3 managed switch purpose-built for demanding enterprise and prosumer network environments. Featuring 24 RJ45 ports — eight delivering 2.5 GbE speeds and sixteen at Gigabit Ethernet — along with two 10G SFP+ uplink ports, it provides versatile, multi-speed connectivity ideal for connecting access points, surveillance systems, workstations, and servers across modern converged networks.

At its core, the USW-Pro-Max-24 delivers 112 Gbps of switching capacity with 56 Gbps of non-blocking throughput and an 83 Mpps forwarding rate, ensuring wire-speed performance even under heavy traffic loads. With support for up to 1,000 VLANs, 16,000 MAC addresses, 6,000 ARP entries, and 256 IPv4 static routes, the switch provides comprehensive Layer 3 inter-VLAN routing capabilities that reduce reliance on a dedicated router and improve east-west traffic efficiency within segmented networks.

The USW-Pro-Max-24 introduces Ubiquiti's Etherlighting technology, where LED-backlit ports visually indicate port location, link speed, and native VLAN assignment directly on the switch face — simplifying physical troubleshooting and cable identification in dense rack environments. The switch operates at a near-silent 17.1 dBA at idle, making it suitable for noise-sensitive deployments such as offices, retail spaces, and hospitality environments.

Built in a standard 1U rack-mount form factor with an SGCC steel enclosure, the switch draws a maximum of 50W and supports DC power backup through the USP RPS, providing redundancy for mission-critical deployments. With an operating temperature range of -5 to 40°C, safety certifications including CB and UL/cUL, and EMC compliance across FCC, CE, and RCM, the USW-Pro-Max-24 is engineered for reliable 24/7 operation in both controlled data centre environments and edge deployments across Australia and worldwide.

Brand UBIQUITI
Switching Capacity 112 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U)
Port Speed (8) 2.5 GbE + (16) GbE + (2) 10G SFP+
Ports 24 Ports
Network Connectivity Wired
Uplink 2 x 10G SFP+
PoE Specification Non-PoE
Switch Features Etherlighting, DC Power Backup, VLAN Routing
