Ubiquiti USW-Pro-Max-24-POE UniFi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output

https://arcip.com.au/web/image/product.template/4048/image_1920?unique=fc4a4a2
The Ubiquiti UniFi Switch Pro Max 24 PoE is a next-generation Layer 3 switch featuring 24 high-power 2.5GbE PoE++/PoE+ ports and innovative Etherlighting™ for advanced network management.

0.00 0.0 AUD 0.00 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

PoE++ 2.5GbE 10GbE UniFi Switch Layer 3 Rack Mount SFP+ PoE Managed Switch Ubiquiti Etherlighting 24-Port VLAN DC Power Backup 112 Gbps 400W PoE
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
USW-Pro-Max-24-PoE
Ubiquiti UniFi Switch Pro Max 24 PoE — 24-Port Layer 3 Etherlighting Switch with 2.5 GbE and PoE++ (400W)

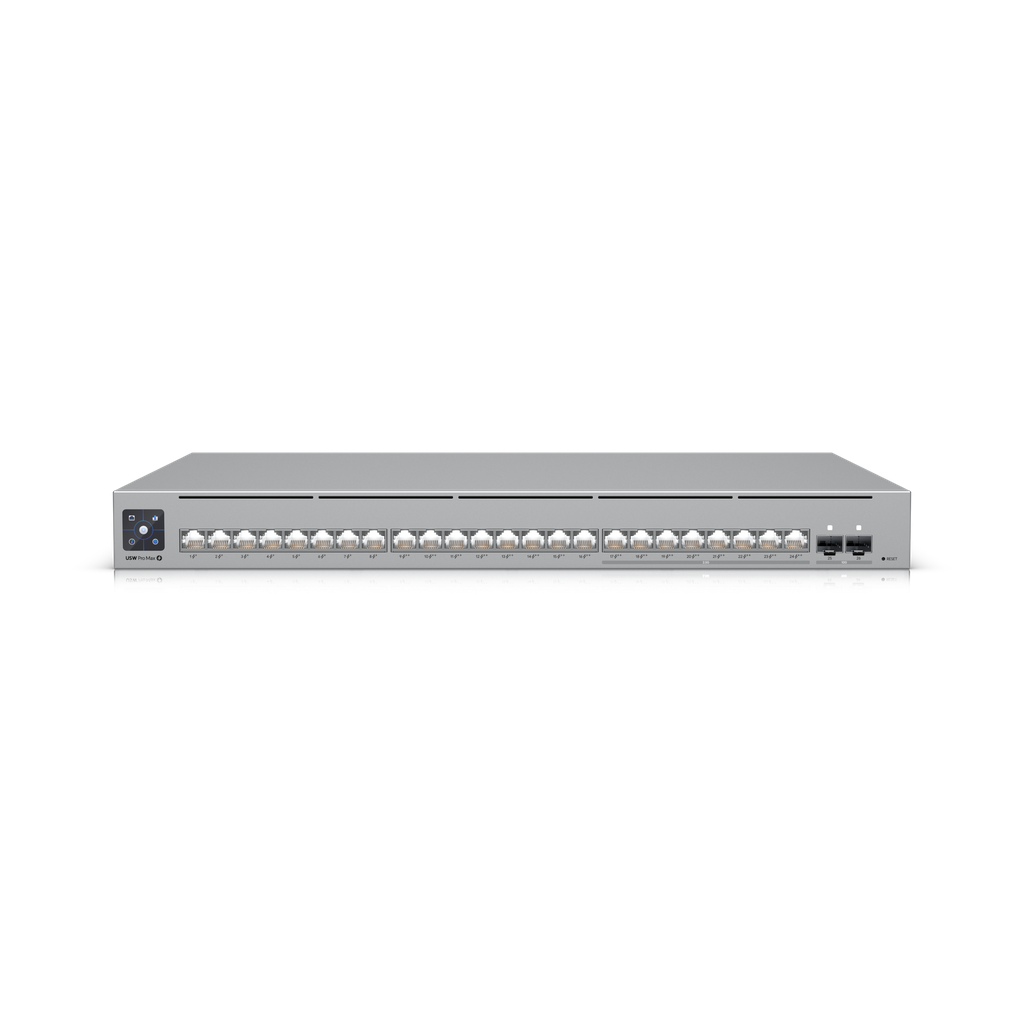

USW-Pro-Max-24-PoE Front View

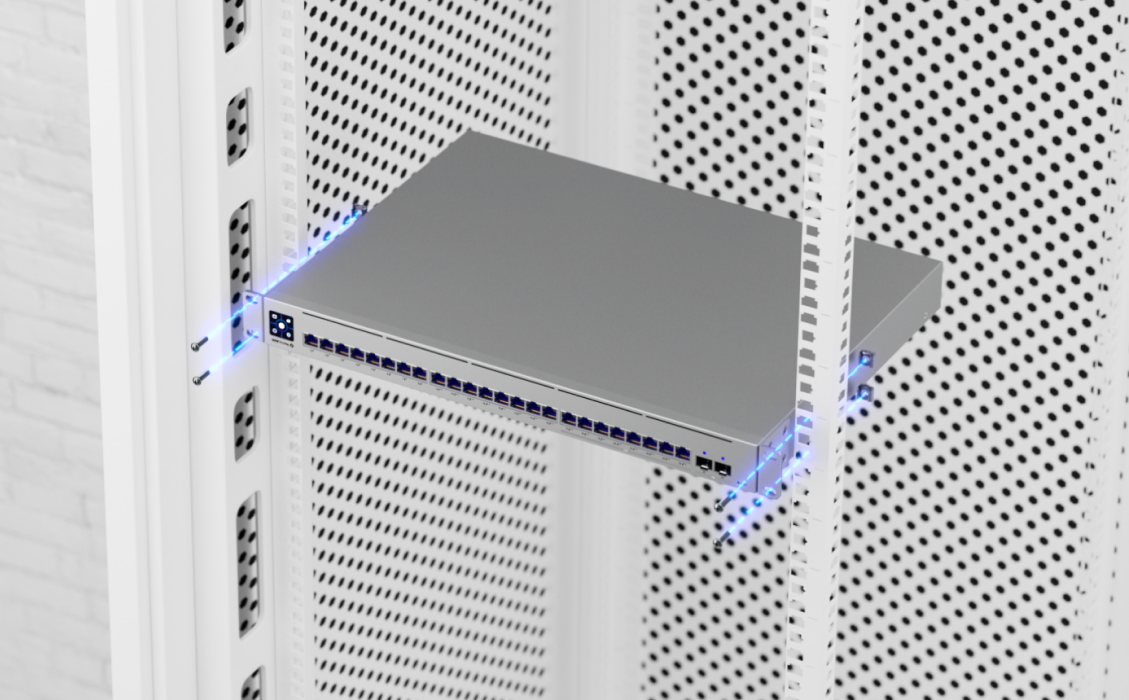

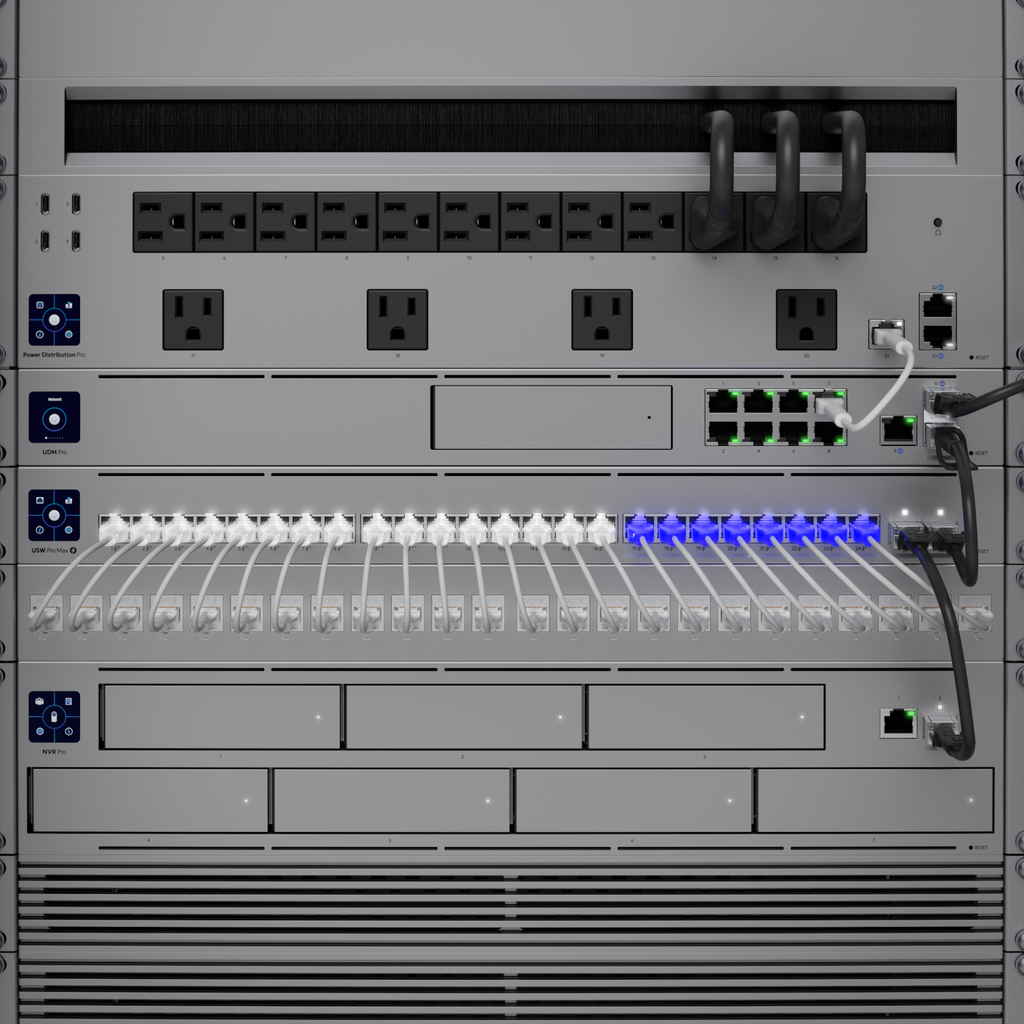

USW-Pro-Max-24-PoE Rack Deployment

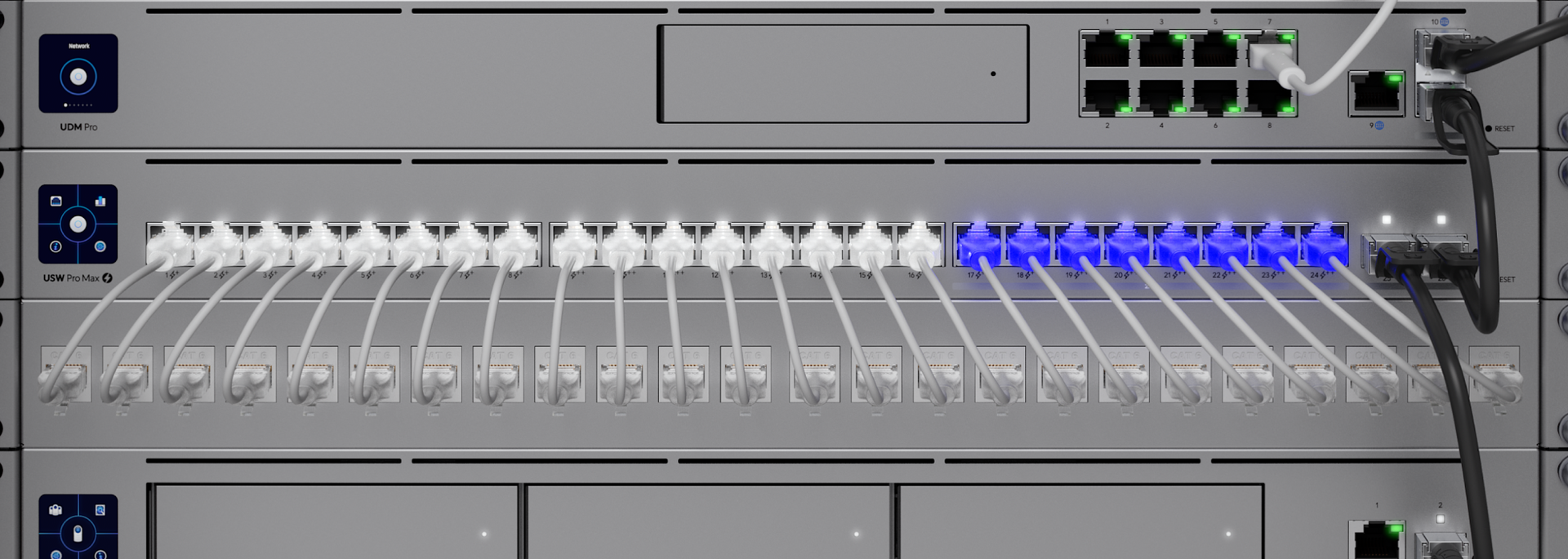

USW-Pro-Max-24-PoE Etherlighting Detail

Features

  • Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (8) 2.5 GbE PoE++ (802.3bt) RJ45 ports (2.5G/1G/100M/10M)
  • (16) GbE RJ45 ports — 8 PoE+ (802.3at) and 8 PoE++ (802.3bt)
  • (2) 10G SFP+ ports for high-speed uplinks (10G/1G)
  • 400W total PoE budget — up to PoE++ per port
  • Layer 3 routing with inter-VLAN support and 256 static routes
  • 112 Gbps switching capacity with 56 Gbps non-blocking throughput
  • 83 Mpps forwarding rate
  • DC Power Backup redundancy via USP RPS
  • Rack mountable 1U form factor

Specifications

Overview
2.5 GbE PoE++ Ports8 (802.3bt)
GbE PoE+ Ports8 (802.3at)
GbE PoE++ Ports8 (802.3bt)
10G SFP+ Uplinks2 (10G/1G)
Max. PoE OutputUp to PoE++ (802.3bt)
Total PoE Budget400W
Dimensions442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
RedundancyDC Power Backup (USP RPS)
Form FactorRack Mount (1U)
Performance
Switching Capacity112 Gbps
Non-Blocking Throughput56 Gbps
Forwarding Rate83 Mpps
Supported VLANs1,000
MAC Address Table16,000
ARP Entries6,000
IPv4 Static Routes256
ACLs (IPv4 / MAC)128 / 128
Hardware
Max. Power Consumption560W (with full PoE load)
Power SupplyAC/DC, internal (100–240V AC, 50/60 Hz)
DC Power BackupUSP RPS DC input
Weight4.7 kg (10.4 lb) / 4.8 kg (10.6 lb) with brackets
EnclosureSGCC Steel
Environment
Operating Temperature-5 to 40°C (23 to 104°F)
Operating Humidity5 to 95% Noncondensing
Certifications
SafetyCB, UL/cUL, CE LVD, S-Mark, BSMI, LOA
EMCFCC, IC, CE, KC, BSMI, RCM, EAC, UKCA

Professional Overview

The Ubiquiti USW-Pro-Max-24-PoE is a high-performance Layer 3 managed PoE++ switch engineered for enterprise deployments that require both advanced routing and substantial power delivery over Ethernet. Combining 24 RJ45 ports — eight 2.5 GbE PoE++ and sixteen Gigabit Ethernet (split between eight PoE+ and eight PoE++) — with two 10G SFP+ uplinks, it provides the multi-speed connectivity and power capacity to drive modern converged networks including UniFi access points, IP cameras, VoIP phones, and PoE-powered IoT devices.

With a generous 400W total PoE budget and support for the 802.3bt PoE++ standard, the switch can deliver up to 60W per port to high-power devices such as PTZ cameras, LED lighting panels, and advanced access points with integrated sensors. The eight 2.5 GbE ports ensure that WiFi 6 and WiFi 6E access points can operate beyond the Gigabit bottleneck, fully utilising their multi-gig wireless throughput for bandwidth-intensive environments.

The USW-Pro-Max-24-PoE delivers 112 Gbps of switching capacity with 56 Gbps of non-blocking throughput and an 83 Mpps forwarding rate, maintaining wire-speed performance even under heavy combined data and PoE loads. Comprehensive Layer 3 capabilities include support for 1,000 VLANs, 16,000 MAC addresses, 6,000 ARP entries, and 256 IPv4 static routes — enabling efficient inter-VLAN routing and network segmentation without requiring a separate router for east-west traffic.

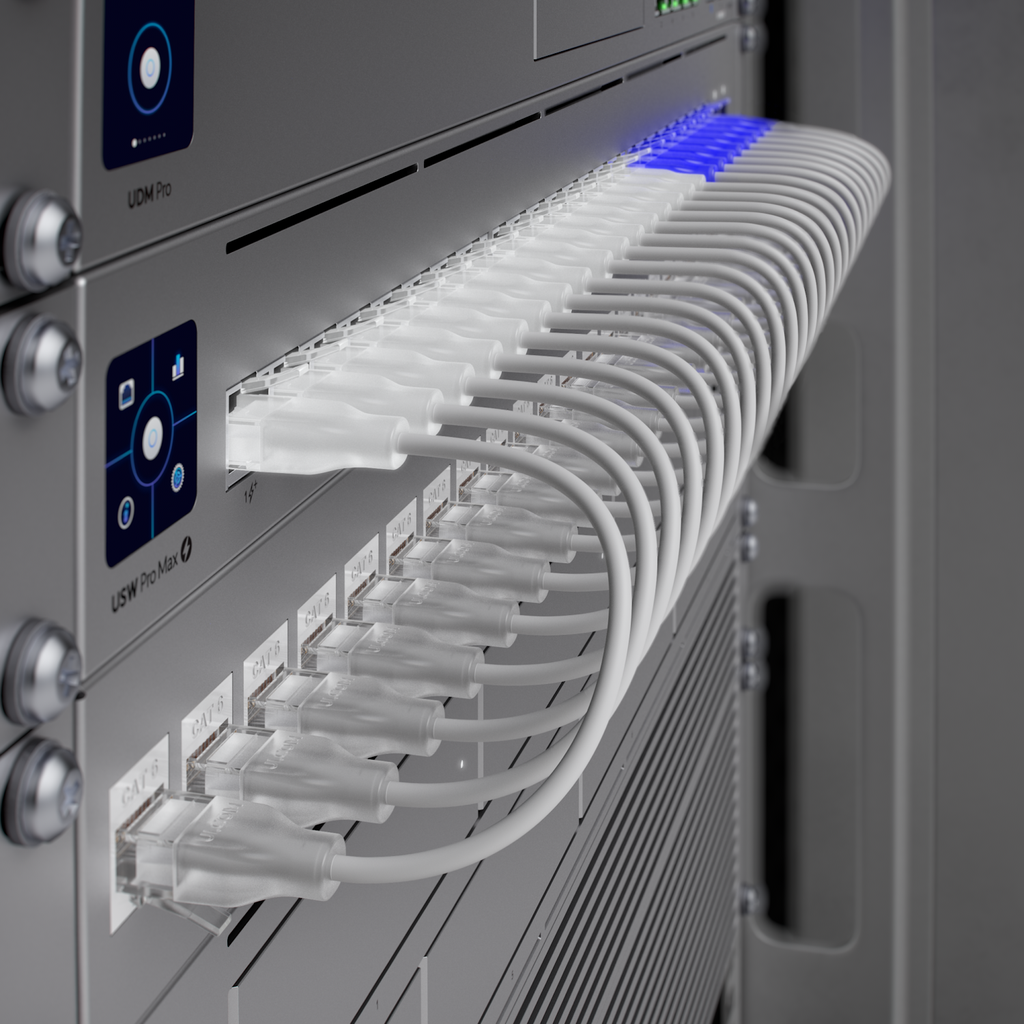

Ubiquiti's Etherlighting technology illuminates each port to visually indicate port location, link speed, and native VLAN assignment, dramatically simplifying physical layer troubleshooting and cable identification in dense rack environments. Built in a standard 1U rack-mount SGCC steel enclosure, the switch supports DC power backup through the USP RPS for mission-critical redundancy. With an operating range of -5 to 40°C, safety certifications including CB and UL/cUL, and EMC compliance across FCC, CE, and RCM, the USW-Pro-Max-24-PoE delivers enterprise-grade reliability for 24/7 deployments across Australia and worldwide.

Brand UBIQUITI
Switching Capacity 112 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U)
Port Speed (8) 2.5 GbE PoE++ + (16) GbE PoE+/PoE++ + (2) 10G SFP+
Ports 24 Ports
Network Connectivity Wired
Uplink 2 x 10G SFP+
PoE Specification PoE++ 802.3bt / 400W Budget
Switch Features Etherlighting, DC Power Backup, VLAN Routing
