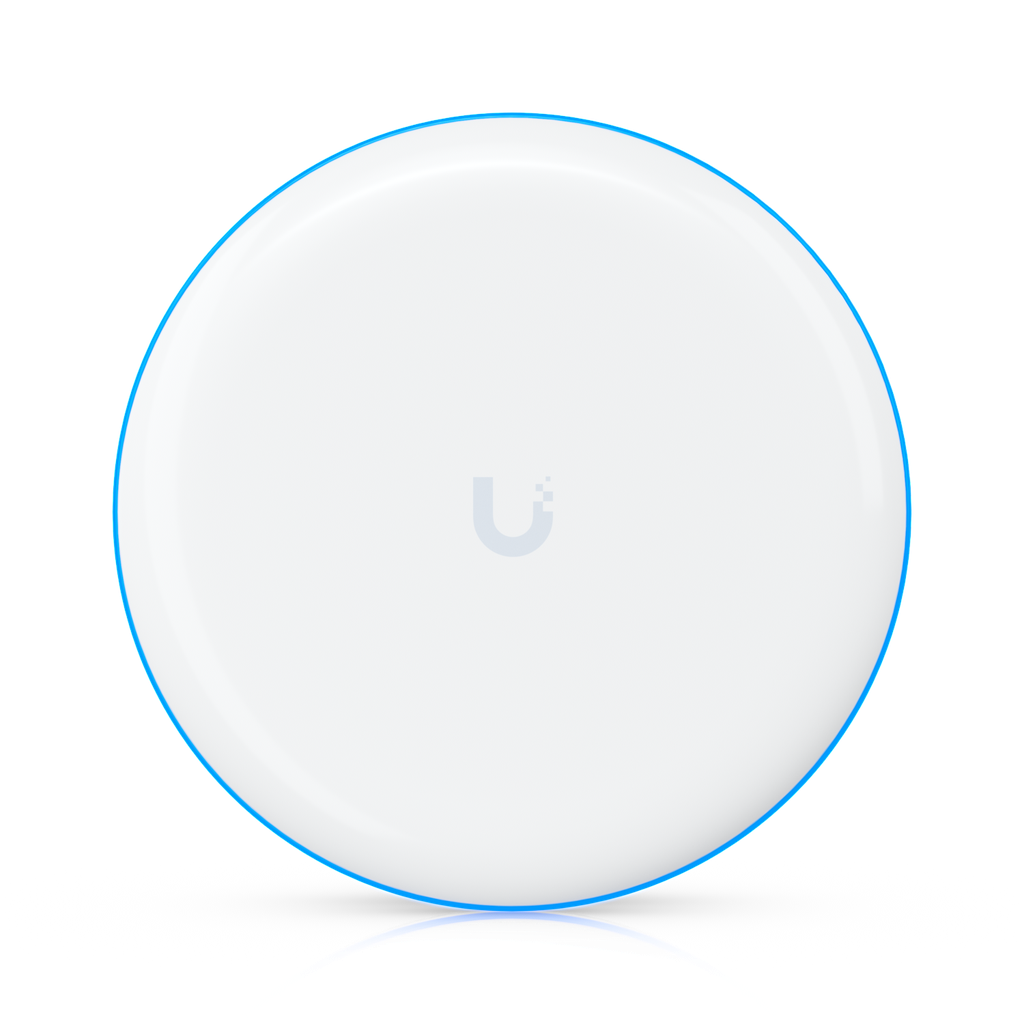

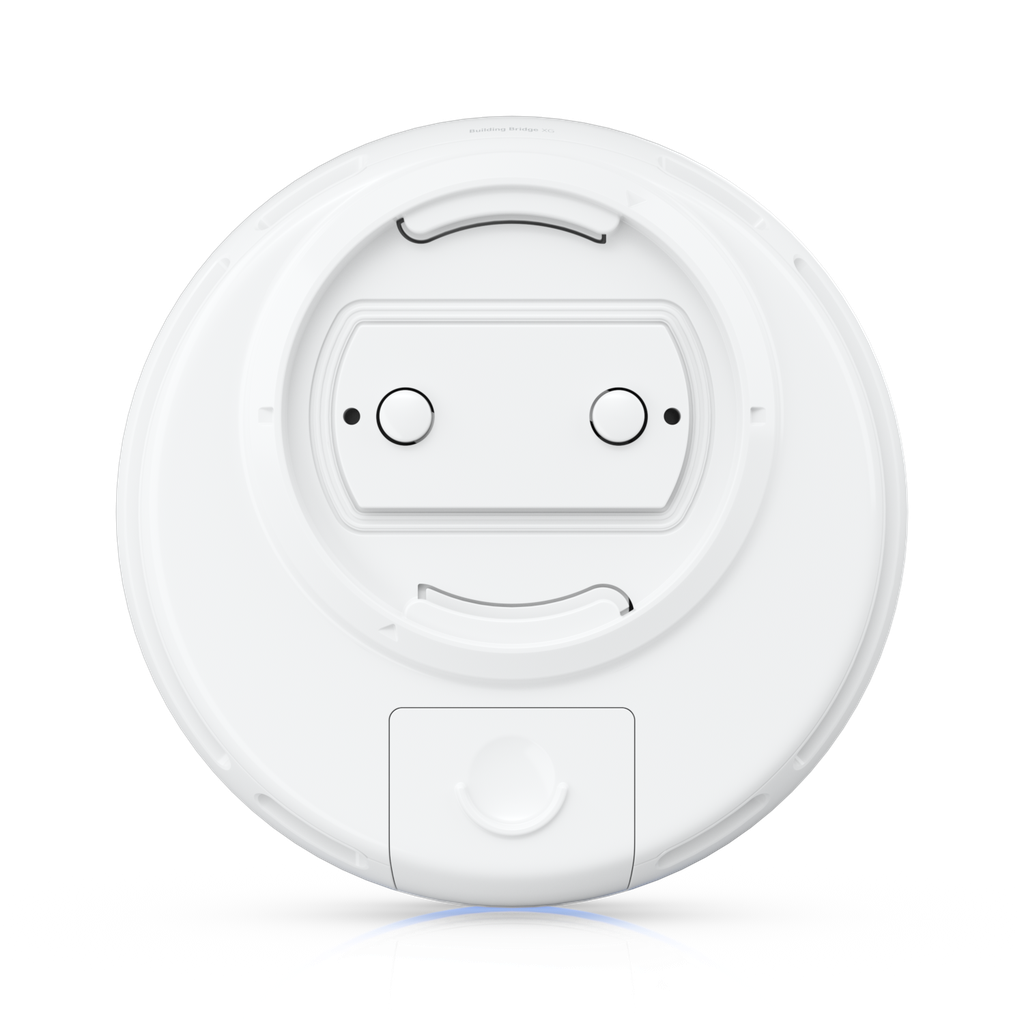

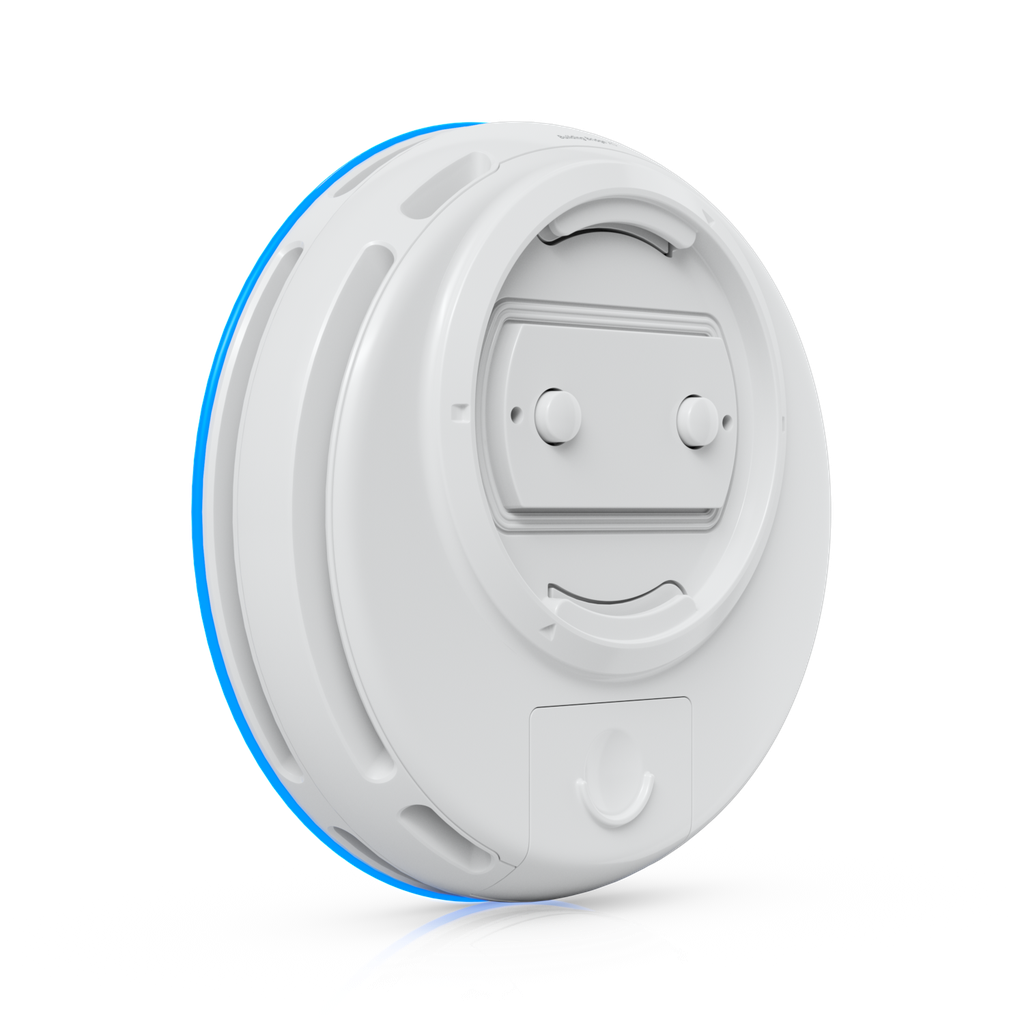

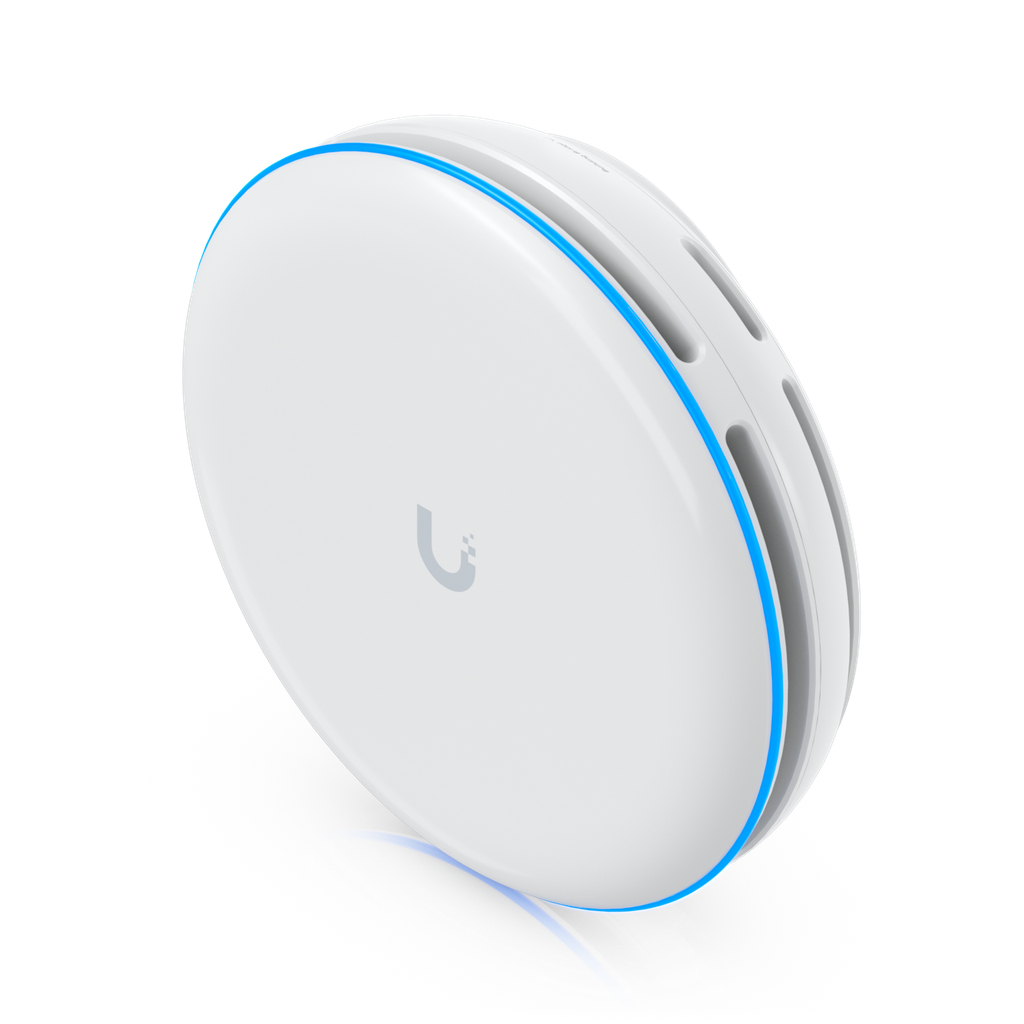

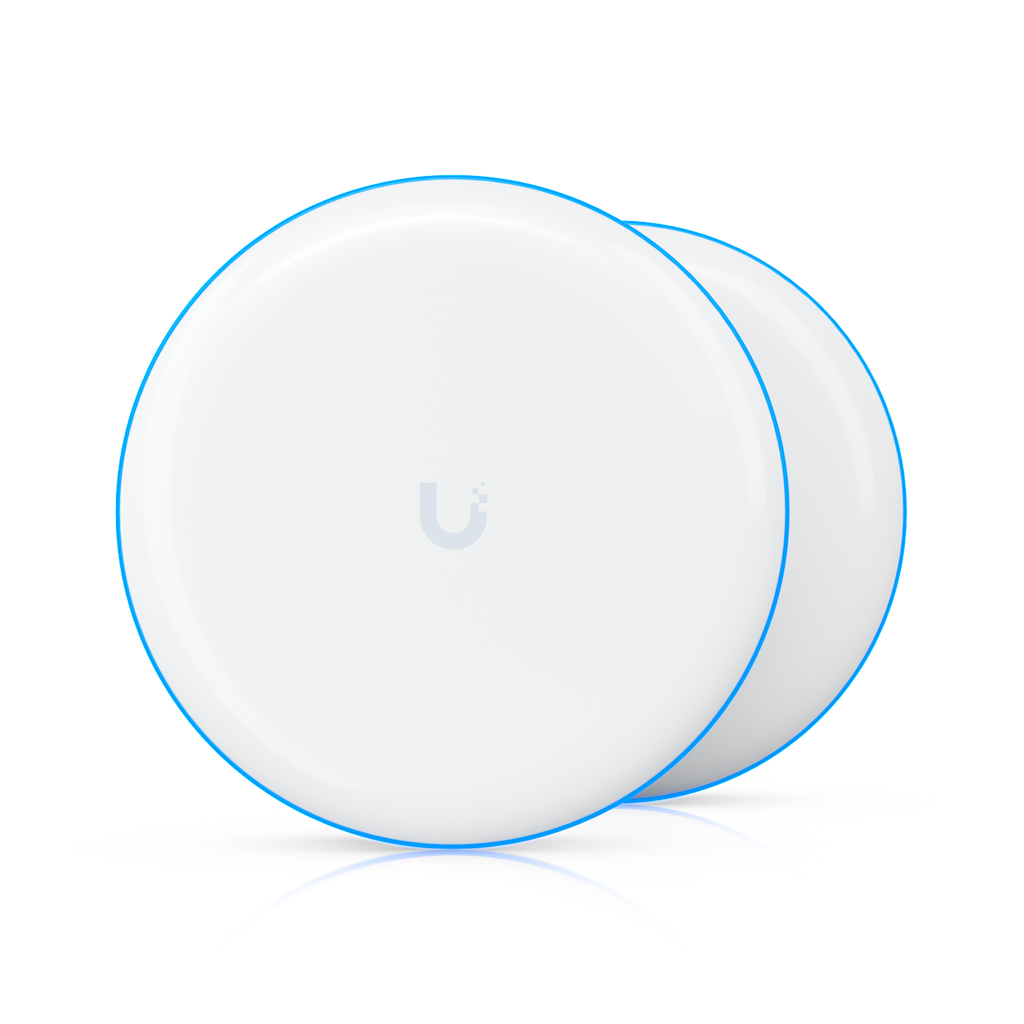

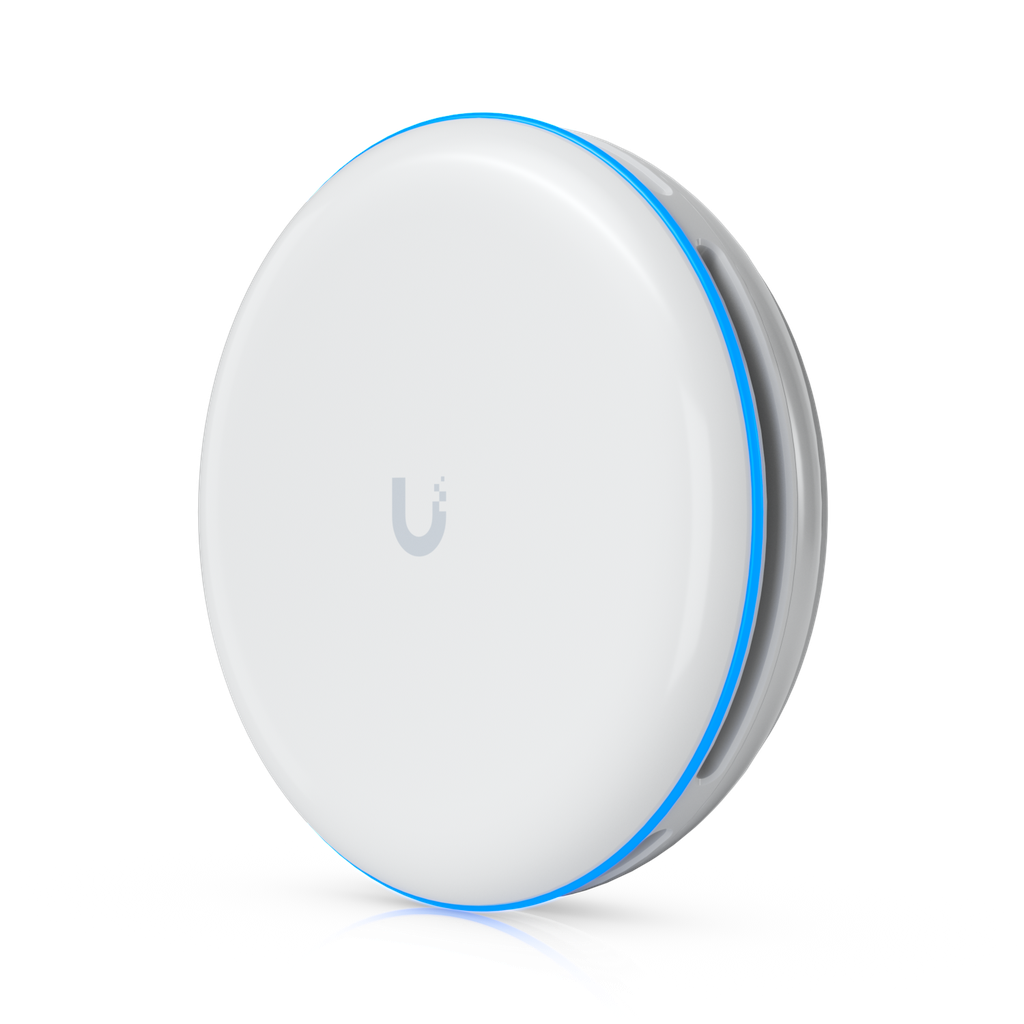

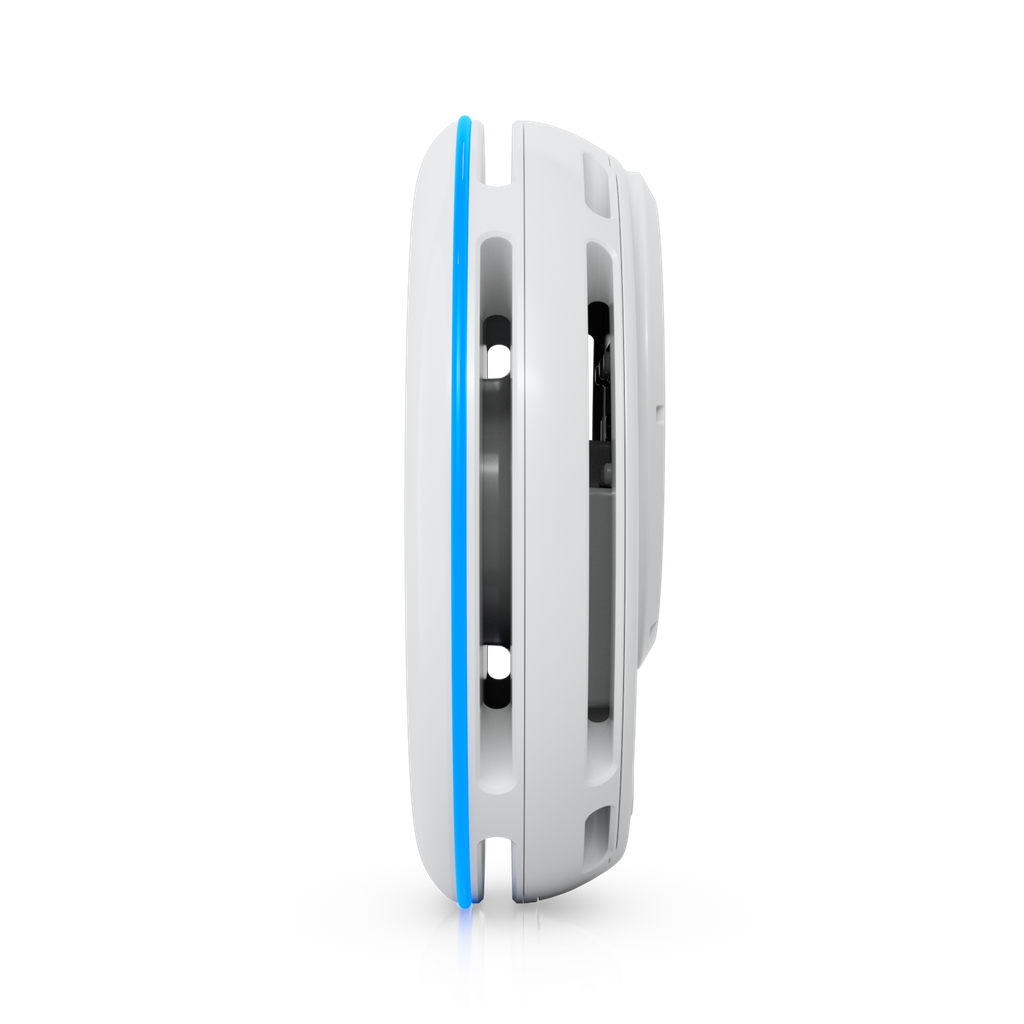

Ubiquiti UBB-XG Unifi Building to Building Bridge

https://arcip.com.au/web/image/product.template/3944/image_1920?unique=72f6a01
The Ubiquiti UBB-XG Building-to-Building Bridge XG provides 60 GHz wireless point-to-point connectivity at up to 6 Gbps throughput over 500 m range. Features dual-radio redundancy with automatic 5 GHz failover, 10G SFP+ and GbE ports, IPX6 weatherproofing, and PoE++ power. Managed through the UniFi Network application.

2,220.12 2220.12 AUD 2,328.15 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • Uplink
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Max Clients
  • Coverage Area
  • AP Features

This combination does not exist.

Outdoor UniFi 60 GHz Ubiquiti Point-to-Point Wireless Bridge 10G SFP+
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UBB-XG
Barcode
810010076045
Tags
UBB-XG
Ubiquiti Building-to-Building Bridge XG — 60 GHz Point-to-Point with 10G SFP+ Uplink and 5 GHz Backup

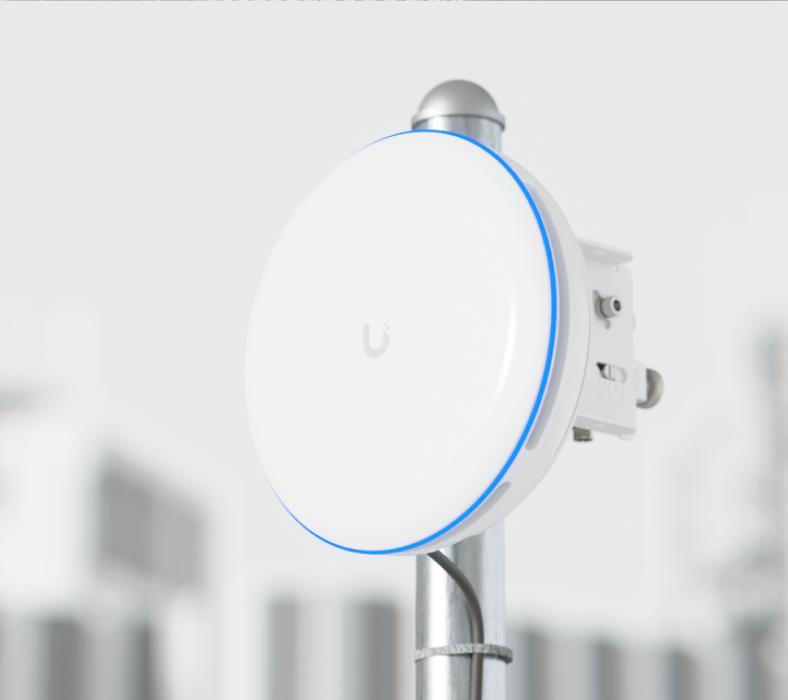

UBB-XG Deployment Diagram

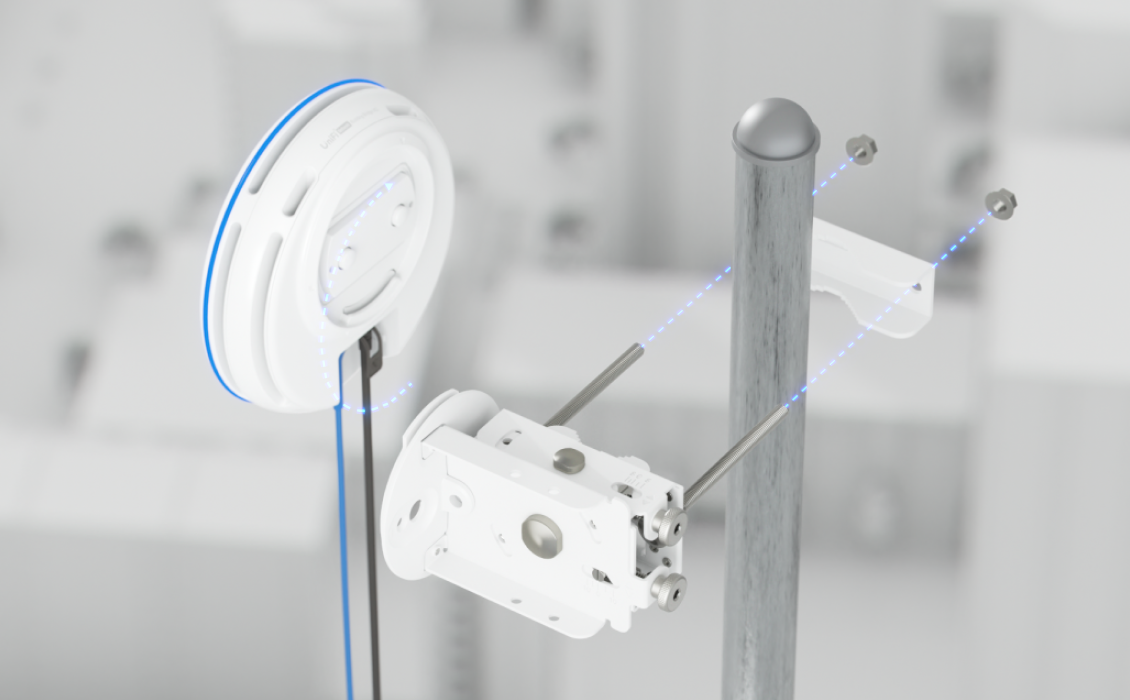

UBB-XG Installation Diagram

Features

  • 500 m (1,640 ft) maximum range for building-to-building connectivity
  • 60 GHz & 5 GHz dual-radio redundancy with automatic failover

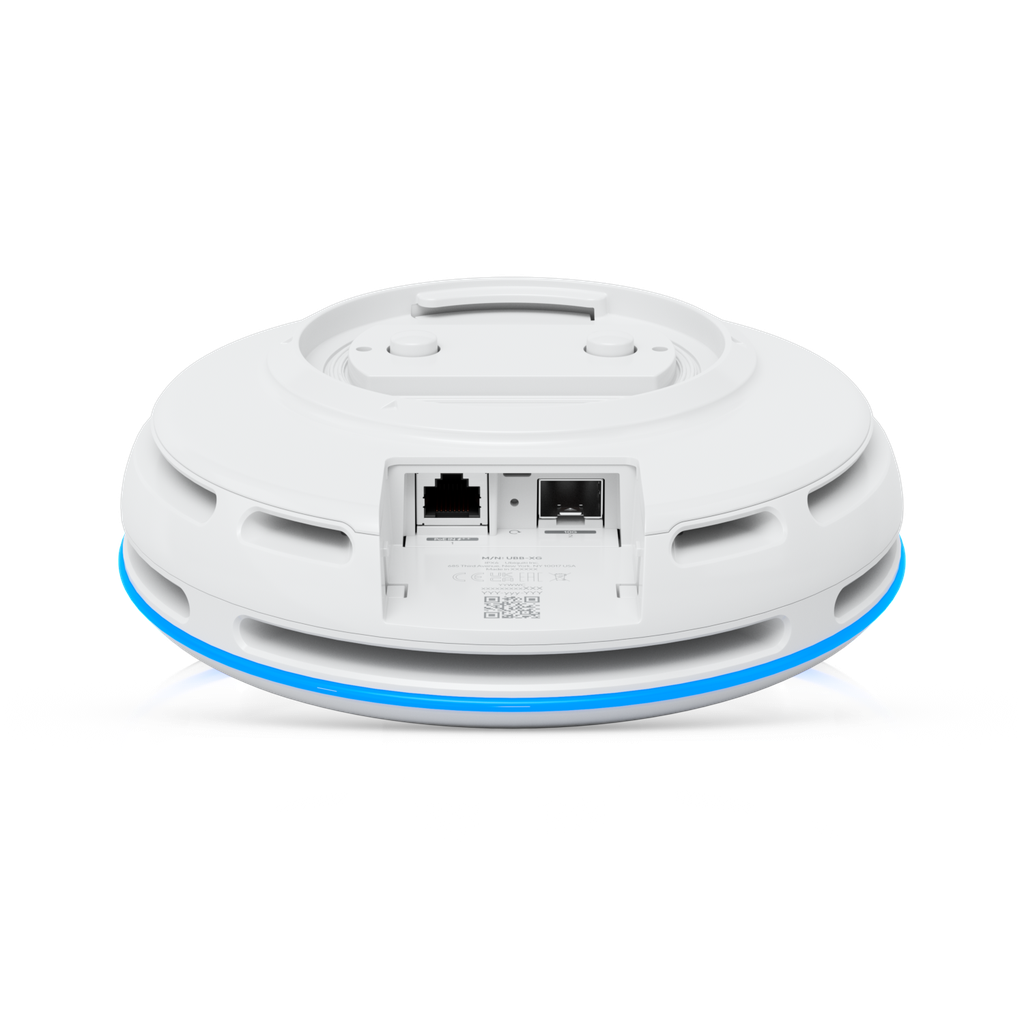

  • (1) 10G SFP+ and (1) GbE PoE++ port
  • 6 Gbps throughput on 60 GHz primary link
  • 866.6 Mbps throughput on 5 GHz backup radio
  • 21 dBi antenna gain (60 GHz) / 14 dBi (5 GHz)
  • PoE++ powered, 29W max consumption
  • IPX6 weatherproof with aluminum alloy and UV-resistant polycarbonate
  • Built-in LED alignment indicators for easy installation
  • Wall and pole mount options (1–2.5" diameter)
  • Managed through the UniFi Network application

Overview

Dimensions⌀191.8 x 59 mm (⌀7.6 x 2.3")
WiFi StandardWiFi 5
Coverage Area500 m (1,640 ft)
MountingWall, pole
WeatherproofingIPX6
Power MethodPoE++ / Passive PoE

Performance

60 GHz Throughput6 Gbps
5 GHz Throughput866.6 Mbps (BW80)
60 GHz Antenna Gain21 dBi
5 GHz Antenna Gain14 dBi
60 GHz TX Power16 dBm
5 GHz TX Power23 dBm
Wireless SecurityWPA2 AES

Hardware

Max Power Consumption29W
Voltage Range48V DC ± 10%
Networking Interface(1) GbE RJ45 / (1) 1/10G SFP+
Weight1.7 kg (3.8 lb) / With mount: 2.9 kg (6.3 lb)
Operating ModePoint-to-Point (PtP)
Wind Loading56 N at 200 km/h
Pole Mount1–2.5" (25–63.5 mm)
EnclosureAluminum alloy, UV-resistant polycarbonate
Operating Temp-40 to 55°C (-40 to 131°F)
60 GHz Frequency57 - 66 GHz
5 GHz Frequency5150 - 5850 MHz
CertificationsCE, FCC, IC, Terragraph

The Ubiquiti UBB-XG Building-to-Building Bridge XG delivers high-speed wireless connectivity between buildings using a 60 GHz primary radio capable of 6 Gbps throughput over distances up to 500 metres. This makes it ideal for campus networks, multi-building offices, and distributed enterprise sites where running fibre between structures is impractical or cost-prohibitive.

The dual-radio architecture sets the UBB-XG apart from single-radio alternatives. The 60 GHz primary link provides near-fibre speeds with 21 dBi antenna gain, while the integrated 5 GHz backup radio (866.6 Mbps, 14 dBi gain) ensures automatic failover if the 60 GHz link is disrupted by heavy rain or other environmental factors. The 10G SFP+ port delivers maximum wired throughput, with a GbE RJ45 port available for management or lower-bandwidth connections.

Built for outdoor deployment, the UBB-XG features IPX6 weatherproofing with an aluminum alloy and UV-resistant polycarbonate enclosure rated for -40 to 55°C operation. Wind loading is rated at 56 N at 200 km/h, and the stainless steel mount supports pole diameters from 25 to 63.5 mm. Built-in LED alignment indicators simplify installation, and the unit draws a maximum of 29W via PoE++ or passive PoE at 48V DC.

Fully managed through the UniFi Network application, the UBB-XG integrates seamlessly into existing UniFi deployments for centralised monitoring and configuration. At just 1.7 kg (2.9 kg with mount) and ⌀191.8 x 59 mm in dimension, it maintains a low-profile installation footprint. Available from Australian stock at ARC IP Networks with genuine local warranty.

Brand UBIQUITI
Form Factor Wall, Pole (Mounts Included), VESA (Optional)
Network Connectivity Wireless (60 GHz + 5 GHz)
Uplink 1 x 10G SFP+ / 1 x GbE RJ45
PoE Specification PoE++ 802.3bt / 29W Max
WiFi Standard WiFi 5 (802.11ac)
Frequency Band Single-Band (5 GHz)
Max Throughput Low Band: 1.7 Gbps (BW80) / Vertical Band: 1.7 Gbps (BW80) / High Band: 1.7 Gbps (BW80)
PoE Requirement PoE++
Max Clients 1,500
Coverage Area 465 m²
AP Features Mesh, Band Steering, MU-MIMO, 10 GbE Uplink
