Ruijie RG-RAP1261, Reyee Wi-Fi 6 AX3000 Ultra-Thin Wall Plate Access Point

Price:

139.89


Ubiquiti UXG-PRO UniFi Next-Generation Gateway Professional
Ubiquiti UXG-PRO UniFi Next-Generation Gateway Professional
908.05
908.05
Hikvision DS-2CD2386G2H 8MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera IP67 4mm
Hikvision DS-2CD2386G2H 8MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera IP67 4mm
313.62
313.62

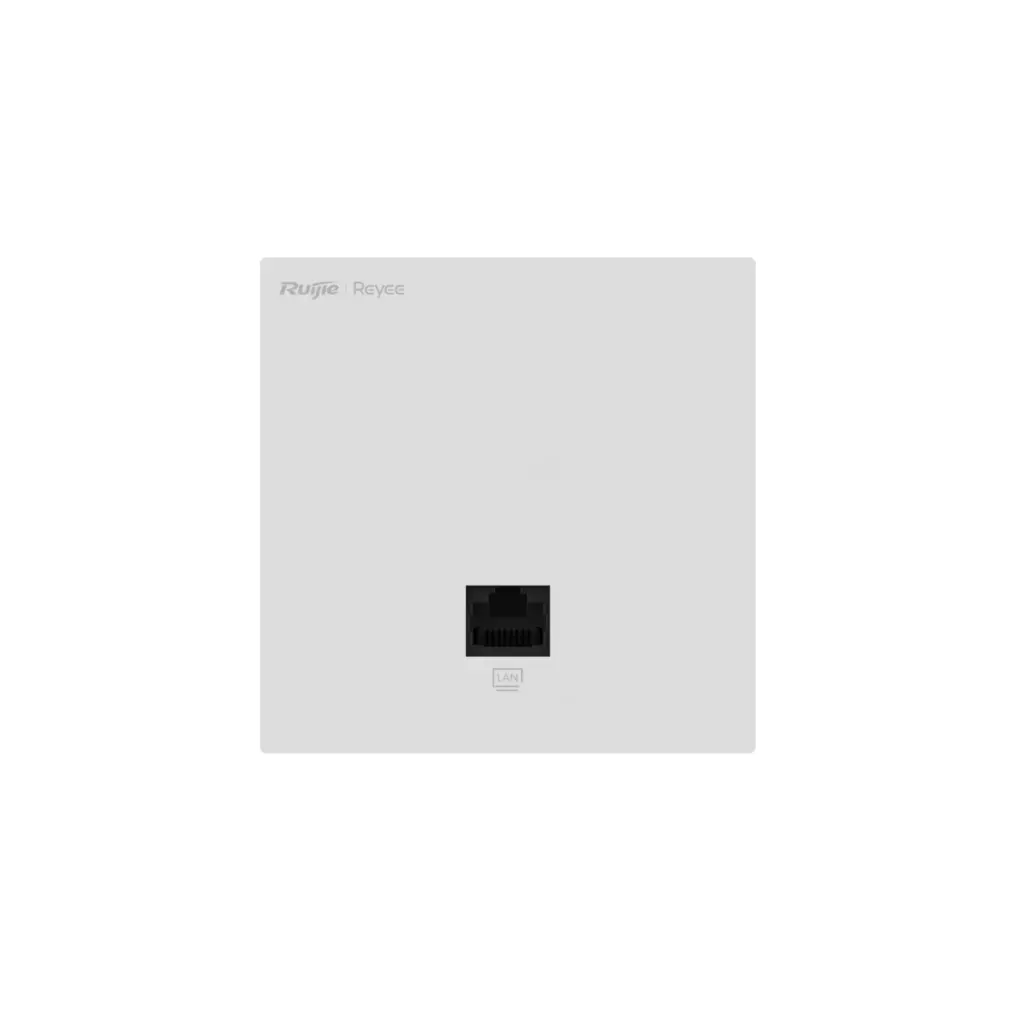

Ruijie RG-RAP1261, Reyee Wi-Fi 6 AX3000 Ultra-Thin Wall Plate Access Point

https://arcip.com.au/web/image/product.template/5639/image_1920?unique=8867584
The Ruijie RG-RAP1261 is an ultra-thin Wi-Fi 6 (AX3000) in-wall access point, offering 2976Mbps dual-band performance and two Gigabit Ethernet ports for next-gen connectivity in high-density environments.

139.89 139.89 AUD 139.89 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ruijie
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-RAP1261
Barcode
6971693279186
Tags
RG-RAP1261 Wi-Fi 6 (AX3000) Dual-Band In-Wall Access Point with 2 Gigabit Ports
Ruijie

Features

  • Dual-band Wi-Fi 6 (802.11ax) with up to 2976Mbps aggregate wireless rate (AX3000)
  • 2 x 10/100/1000BASE-T Gigabit Ethernet Ports for high-speed wired client connectivity and uplink
  • Ultra-thin (86mm standard junction box) design for discreet and aesthetic in-wall installation
  • Supports Ruijie Cloud management for remote control, monitoring, and optimization
  • Integrated omni-directional antennas for optimized signal coverage
  • Supports 802.3af/at Power over Ethernet (PoE) for flexible and simplified deployment
  • Intelligent QoS for optimized network performance and traffic prioritization
  • Advanced security features: WPA3, WPA/WPA2-PSK, WPA/WPA2-Enterprise
  • High-density user access capability with OFDMA and BSS Coloring
  • Supports seamless roaming and load balancing

Specifications

Wireless
Wi-Fi Standards802.11a/b/g/n/ac/ax
Operating Frequencies2.4 GHz & 5 GHz
Max Wireless Rate2976Mbps (2.4GHz: 574Mbps, 5GHz: 2402Mbps)
MIMO2x2 MIMO @ 2.4GHz, 2x2 MIMO @ 5GHz
AntennaInternal Omni-directional
Spatial Streams2 @ 2.4GHz, 2 @ 5GHz
Channel WidthSupports 20/40MHz (2.4GHz), 20/40/80/160MHz (5GHz)
Ports
Ethernet Ports2 x 10/100/1000BASE-T RJ45 (1 Uplink, 1 Downlink)
PoE Support802.3af/at PoE
Power
Power Supply802.3af/at PoE
Max Power Consumption< 15W (typical)
Physical & Environmental
Dimensions (W x D x H)86mm x 86mm x 26.1mm (fits standard wall plate, ultra-thin)
InstallationIn-wall (86mm junction box)
Operating Temperature0°C to 40°C
ManagementRuijie Cloud App, Web GUI

Professional Overview

The Ruijie RG-RAP1261 is a cutting-edge Wi-Fi 6 (802.11ax) dual-band in-wall access point, meticulously engineered to provide next-generation, ultra-high-performance wireless connectivity within discrete, aesthetically pleasing installations. With an impressive aggregate wireless rate of up to 2976Mbps (AX3000 class, with 574Mbps on 2.4GHz and 2402Mbps on 5GHz), this access point is an ideal solution for modern hospitality environments (hotels, apartments), high-density dormitories, and advanced office spaces that demand superior Wi-Fi 6 speeds, lower latency, and increased capacity in every room, without intrusive cabling or visible equipment.

The RG-RAP1261 boasts an ultra-thin in-wall design, fitting a standard 86mm electrical junction box, allowing for seamless integration into existing infrastructure, blending harmoniously with interior decor. This discreet form factor not only enhances aesthetics but also simplifies deployment in multi-room or multi-tenant scenarios where a clean look is paramount. Beyond wireless, it features two Gigabit Ethernet (GE) ports, providing convenient high-speed wired connectivity for devices such as IP phones, smart TVs, or desktop computers, offering versatile network access directly from the wall plate.

Leveraging Wi-Fi 6 technologies like OFDMA, BSS Coloring, and MU-MIMO, the RG-RAP1261 significantly improves network efficiency and capacity, especially in high-density user environments. This translates to better performance, lower latency, and a smoother experience for more connected devices simultaneously. Power over Ethernet (802.3af/at PoE) support further streamlines installation by allowing both power and data to be delivered over a single Ethernet cable, minimizing wiring complexity and reducing the need for local power adapters, making deployment highly flexible and cost-effective across numerous rooms.

As a key component of Ruijie's Reyee Cloud ecosystem, the RG-RAP1261 offers robust cloud management capabilities. Network administrators can leverage the intuitive Ruijie Cloud App or web GUI for zero-touch provisioning, remote monitoring, configuration, and troubleshooting from anywhere, at any time. This centralized management simplifies large-scale deployments, reduces operational costs, and ensures consistent network performance across an entire property. The Ruijie RG-RAP1261 delivers a powerful combination of next-gen Wi-Fi 6 performance, integrated Gigabit wired connectivity, ultra-thin discreet design, and smart cloud management, making it an excellent and future-proof choice for enhancing guest or user experience in modern hospitality and professional settings.

Brand Ruijie
