NVR-104MH-C/4P

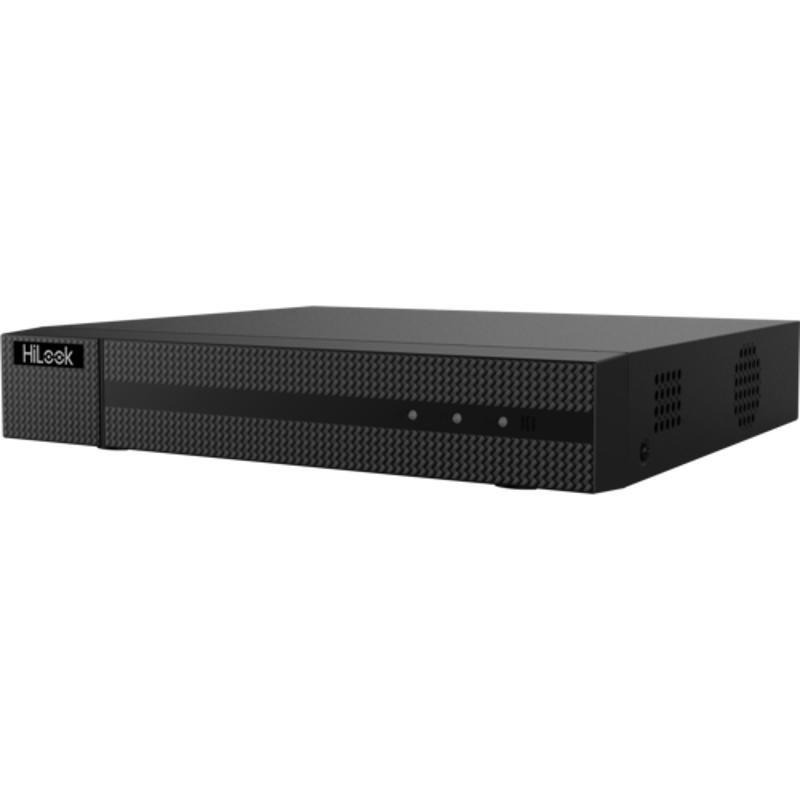

HiLook by Hikvision 4-Channel 4K PoE Network Video Recorder

Features

  • Up to 4-channel IP video input
  • Supports 1-ch @ 4K or 4-ch @ 1080P decoding capability
  • Advanced H.265+/H.265/H.264+/H.264 video compression
  • 4 independent Power over Ethernet (PoE) network interfaces
  • Max 40Mbps incoming bandwidth and 80Mbps outgoing bandwidth
  • Supports 1 SATA interface for HDD up to 8TB capacity
  • HDMI output up to 4K (3840 × 2160) resolution
  • Compact 1U chassis with durable metal case

Specifications

Video/Audio
IP Video Input4-channel
Decoding Capability1-ch @ 4K or 4-ch @ 1080P
HDMI Output1, up to 4K (3840 × 2160) resolution
Video CompressionH.265+/H.265/H.264+/H.264
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth80Mbps
PoE Ports4 independent 10/100 Mbps PoE network interfaces
Storage
SATA Interface1, up to 8TB capacity per HDD
General
Case1U 315 case (Metal)
Power Supply12 VDC (typical for NVRs)
Operating Temperature-10 °C to 55 °C (14 °F to 131 °F) (typical for NVRs)

Professional Overview

The HiLook by Hikvision NVR-104MH-C/4P is a powerful and compact 4-channel Network Video Recorder designed to be the central hub for small to medium-sized IP video surveillance systems. Capable of handling up to 4 IP camera inputs, this NVR delivers impressive decoding capability, supporting 1-channel at a stunning 4K resolution or 4-channels at 1080P, ensuring crystal-clear live viewing and playback of your security footage.

A key feature of the NVR-104MH-C/4P is its four independent Power over Ethernet (PoE) network interfaces. This simplifies installation significantly, as a single Ethernet cable can provide both power and data to compatible IP cameras, eliminating the need for separate power supplies and reducing cabling complexity. It boasts a substantial 40Mbps incoming bandwidth for smooth recording and an 80Mbps outgoing bandwidth for efficient remote access and playback.

The NVR utilizes advanced H.265+ compression technology, which dramatically reduces bandwidth and storage requirements compared to previous standards without compromising video quality. This efficiency allows for longer recording times on the single SATA interface, which supports up to an 8TB HDD. The HDMI output supports resolutions up to 4K, providing a high-definition viewing experience on compatible monitors.

Housed in a durable 1U metal chassis, the NVR-104MH-C/4P is built for reliability in various operating environments. It is an ideal solution for homes, small businesses, and retail locations requiring a robust, scalable, and easy-to-manage surveillance system. Compatible with the wide range of HiLook and Hikvision IP cameras, this NVR offers a cost-effective and high-performance foundation for comprehensive IP video security.

Brand HiLook
Datasheet-of-NVR-104MH-C_4P-NVRD_V4.71.200_20220705.pdf
