Mikrotik CRS520-4XS-16XQ-RM 16x 100G QSFP28 ports, 4x 25G SFP28 ports

Price:

3,531.00


Mikrotik CRS518-16XS-2XQ-RM 2x 100G QSFP28 ports,16x 25G SFP28 ports
Mikrotik CRS518-16XS-2XQ-RM 2x 100G QSFP28 ports,16x 25G SFP28 ports
2,374.35
2,374.35
Mikrotik CSS610-8P-2S+IN POE Cloud Smart Switch 2SPP+ and SwitchOS
Mikrotik CSS610-8P-2S+IN POE Cloud Smart Switch 2SPP+ and SwitchOS
399.30
399.30

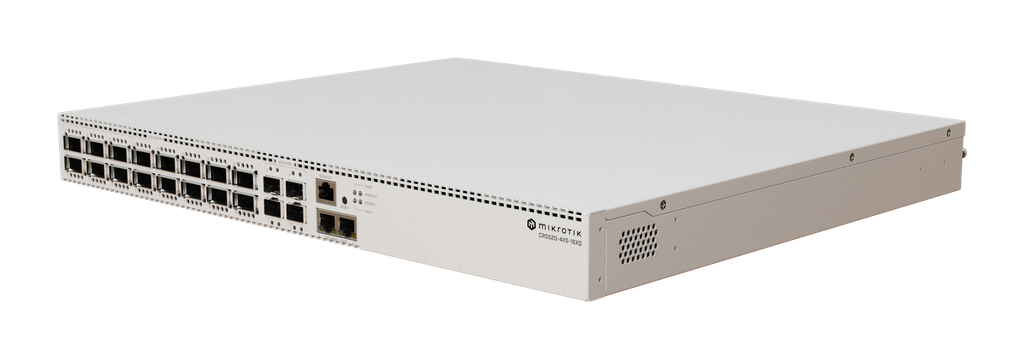

Mikrotik CRS520-4XS-16XQ-RM 16x 100G QSFP28 ports, 4x 25G SFP28 ports

https://arcip.com.au/web/image/product.template/3057/image_1920?unique=90e2482
The MikroTik CRS520-4XS-16XQ-RM is an ultra-high-performance 1U rackmount Cloud Router Switch with 16x 100 Gigabit QSFP28 and 4x 25 Gigabit SFP28 ports. Engineered for extreme-speed fiber aggregation in data centers and enterprise core networks, it delivers unparalleled bandwidth and reliability.

3,531.00 3531.0 AUD 3,531.00 incl. GST

Not Available For Sale


  • Network Layer
  • Form Factor
  • Operating System
  • Brand

This combination does not exist.

Switch MikroTik RouterOS Rackmount Managed Switch Cloud Router Switch CRS
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
CRS520-4XS-16XQ-RM
Barcode
4752224009265
Tags
CRS520-4XS-16XQ-RM

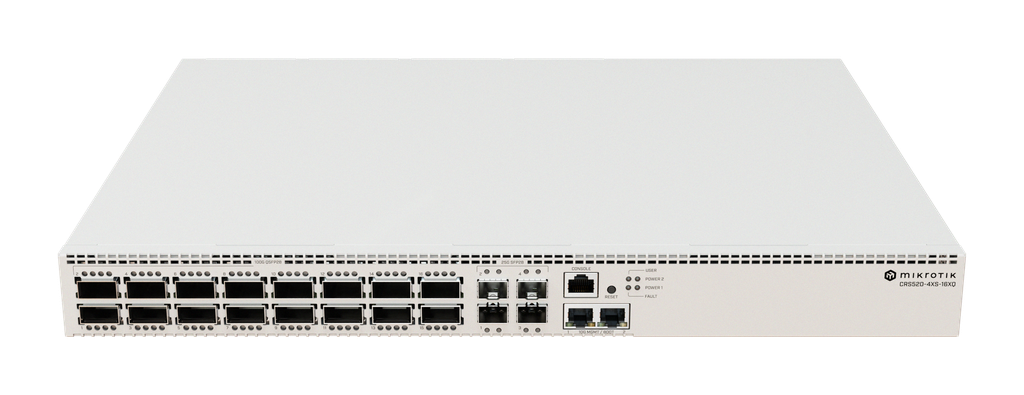

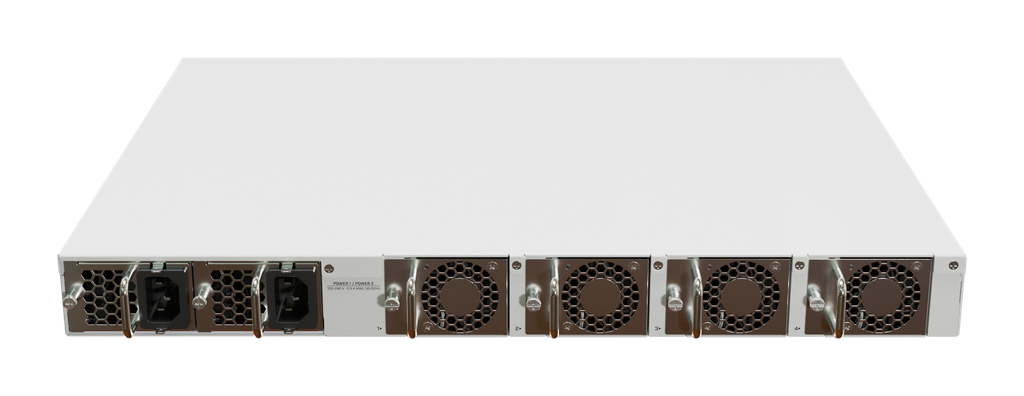

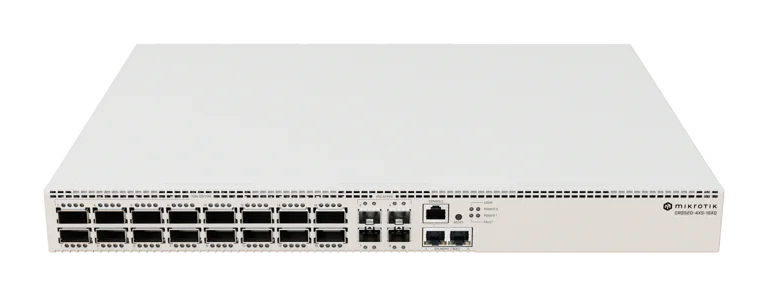

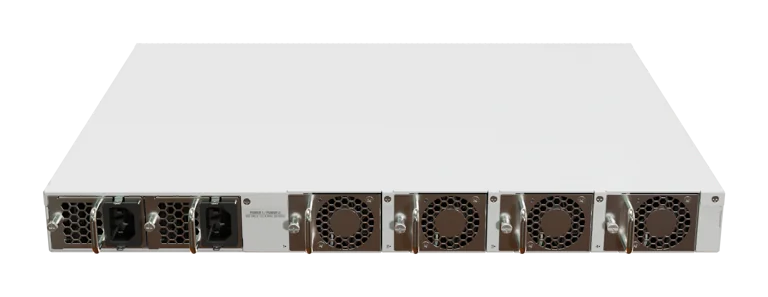

MikroTik CRS520-4XS-16XQ-RM — Cloud Router Switch
CRS520-4XS-16XQ-RM
CRS520-4XS-16XQ-RM

Features

  • Switch chip: 98CX8410
  • CPU: AL52400
  • Dual-boot RouterOS / SwOS
  • RouterOS Level Operating System
  • 4 fans cooling

Specifications

General
Product codeCRS520-4XS-16XQ-RM
Suggested price$2,195.00
ArchitectureARM 64bit
CPUAL52400
CPU core countCPU nominal frequency
2 GHzCPU Threads count
Switch chip model98CX8410
RouterOS licenseOperating System
RouterOS v7Size of RAM
4 GBStorage size
128 MBStorage type
NANDMTBF
Approximately 200'000 hours at 25CTested ambient temperature
Number of AC inputsAC input range
100-240Number of PSU slots
Frequency (Hz)50-60
Max power consumption150 W (220 W with both PSUs)
Max power consumption without attachments123 W
Cooling type4 fans
Ethernet
Number of 1G/2.5G/5G/10G Ethernet ports2 (supported: 10M/100M/1G/10G)
Fiber
Number of 25G SFP28 portsNumber of 100G QSFP28 ports
Serial console portRJ45
Other
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes
Certification & Approvals
CertificationCE, EAC, ROHS
IP20

Professional Overview

The MikroTik CRS520-4XS-16XQ-RM is a Cloud Router Switch.

Built around the 98CX8410 switch chip.

Running dual-boot RouterOS v7 (Level Operating System) and SwOS, the switch supports VLAN management, port mirroring, bandwidth limiting, static routing, DHCP, and firewall rules in RouterOS mode.

4 fans cooling. Certified CE, EAC, ROHS. Australian stock from ARC IP Networks.

Network Layer Layer 3
Form Factor Rack Mount (1U)
Operating System RouterOS / SwOS
Brand MikroTik
