MikroTik CRS317-1G-16S+RM Cloud Router Switch OS L6 Rack Mount

Price:

840.95


Mikrotik CRS312-4C+8XG-RM 12-Port 10G Switch Dual Power Supply Rack Kit
Mikrotik CRS312-4C+8XG-RM 12-Port 10G Switch Dual Power Supply Rack Kit
1,172.64
1,177.00 (0% OFF)
MikroTik CRS318-16P-2S+OUT netPower 16P 16 Gigabit PoE ports 2 SFP+ IP55
MikroTik CRS318-16P-2S+OUT netPower 16P 16 Gigabit PoE ports 2 SFP+ IP55
441.98
480.15 (8% OFF)

MikroTik CRS317-1G-16S+RM Cloud Router Switch OS L6 Rack Mount

https://arcip.com.au/web/image/product.template/3043/image_1920?unique=8218157

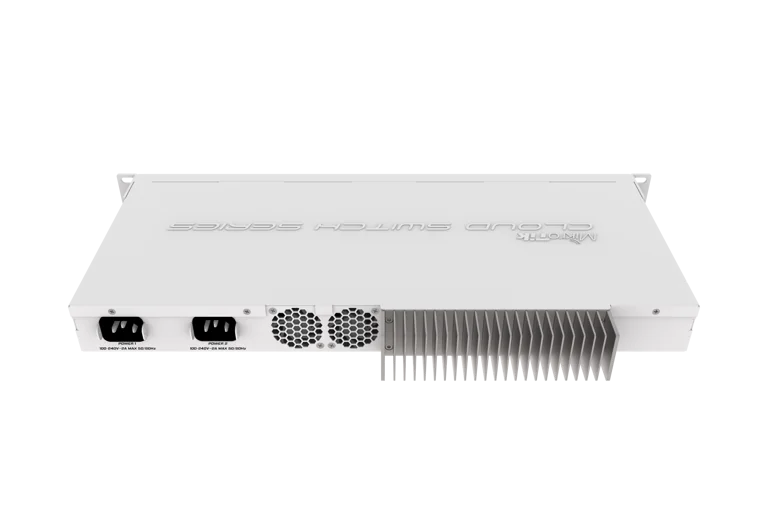

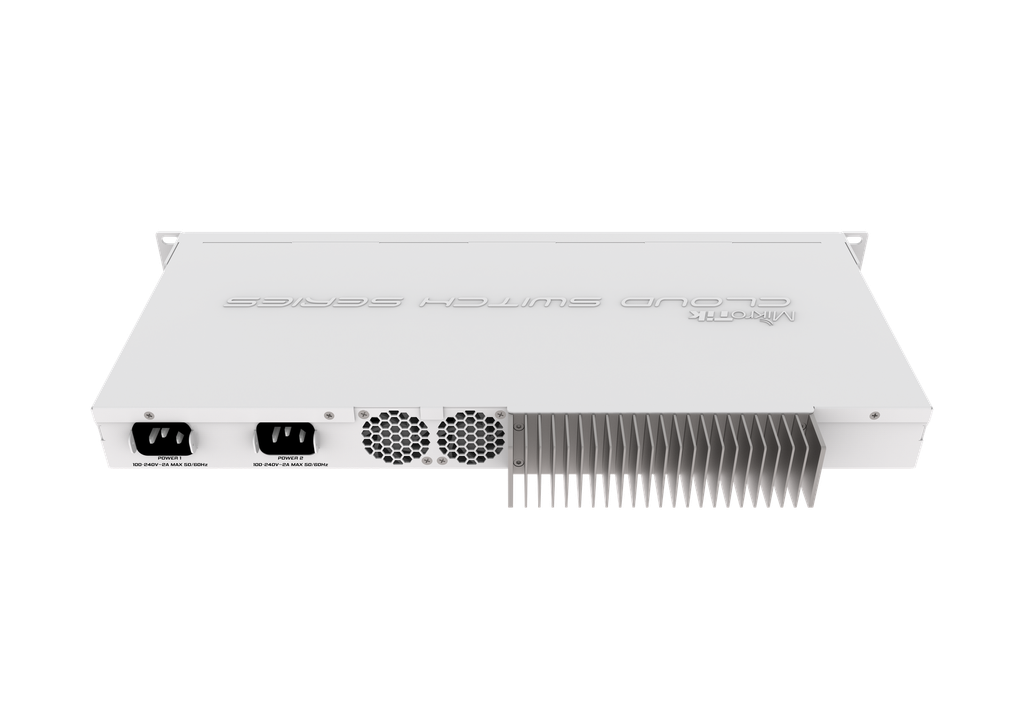

The MikroTik CRS317-1G-16S+RM is a high-performance 1U rackmount Cloud Router Switch with 16x 10GbE SFP+ ports and 1x Gigabit Ethernet, ideal for data centers and large enterprise fiber networks. It includes a RouterOS Level 6 license for advanced routing and switching.

840.95 840.95 AUD 840.95 incl. GST

Not Available For Sale


  • Network Layer
  • Form Factor
  • Ports
  • Operating System
  • Brand

This combination does not exist.

Switch MikroTik RouterOS Rackmount SFP+ Managed Switch Cloud Router Switch CRS 1-Port
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
CRS317-1G-16S+RM
Barcode
4752224002167
Tags
CRS317-1G-16S+RM
MikroTik CRS317-1G-16S+RM — Cloud Router Switch with 16
CRS317-1G-16S+RM

Features

  • SFP: 16
  • Switch chip: 98DX8216
  • CPU: 98DX8216
  • Dual-boot RouterOS / SwOS
  • RouterOS Level Operating System
  • 2 fans cooling

Specifications

General
Product codeCRS317-1G-16S+RM
Suggested price$499.00
ArchitectureARM 32bit
CPU98DX8216
CPU core countCPU nominal frequency
800 MHzCPU Threads count
Switch chip model98DX8216
Dimensions443 x 224 x 44 mm
RouterOS licenseOperating System
RouterOS / SwitchOSSize of RAM
1 GBStorage size
16 MBStorage type
FLASHMTBF
Approximately 200'000 hours at 25CTested ambient temperature
Number of AC inputsAC input range
100-240Number of PSU slots
Frequency (Hz)50-60
Max power consumption44 W
Cooling type2 fans
Ethernet
SFP+ ports16
Peripherals
Serial console portRJ45
Other
CPU temperature monitorYes
BeeperYes
Certification & Approvals
CertificationCE, EAC, ROHS

Professional Overview

The MikroTik CRS317-1G-16S+RM is a Cloud Router Switch with 16 SFP connectivity.

Built around the 98DX8216 switch chip.

Running dual-boot RouterOS v7 (Level Operating System) and SwOS, the switch supports VLAN management, port mirroring, bandwidth limiting, static routing, DHCP, and firewall rules in RouterOS mode.

2 fans cooling. Certified CE, EAC, ROHS. Australian stock from ARC IP Networks.

Network Layer Layer 3
Form Factor Rack Mount (1U)
Ports 1 x GbE + 16 SFP
Operating System RouterOS / SwOS
Brand MikroTik
